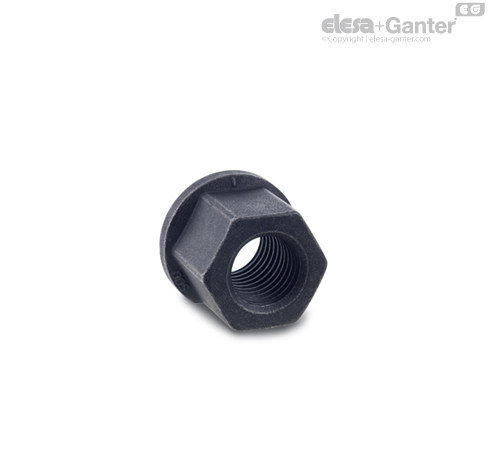

DIN 6331

Hexagon nuts

with collar

DIN 6331

Hexagon nuts
Hexagon nuts

DIN 6331

Hexagon nuts
Hexagon nuts

Steel

  • Tensile strength class 10
  • blackened

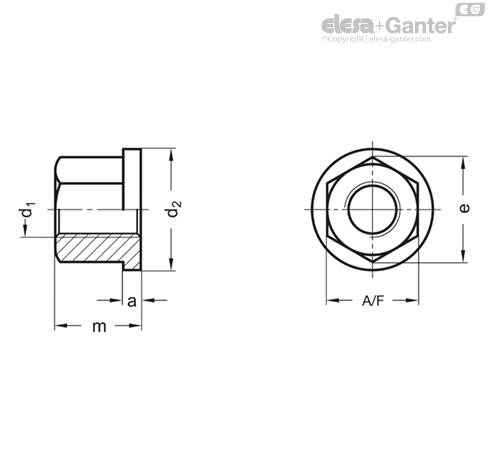

Hexagon nuts DIN 6331 are used on clamping applications which require frequent clamping and unclamping (m = 1.5 x d1).

The collar of the nut eliminates the need for washers.

The official standard sheet specifies the additional sizes M 27, M 42 and M 48. But M 14 is not forseen on the official standard sheet.

Size M10 with A/F = 17
