GN 391

Drive / Transfer units

for the Connection of Linear Actuators

GN 391-NI

Drive / Transfer units
Stainless Steel

GN 391-SCR

Drive / Transfer units
Steel

GN 391-NI

Drive / Transfer units
Stainless Steel

Version in Steel

Guide tube

Tube DIN 2391

Steel, chrome-plated SCR

Version in Stainless Steel

Guide tube

Tube DIN 2462

Stainless steel AISI 304 NI

Shaft

Steel respectively stainless steel

Ball bearing

End cap

Plastic

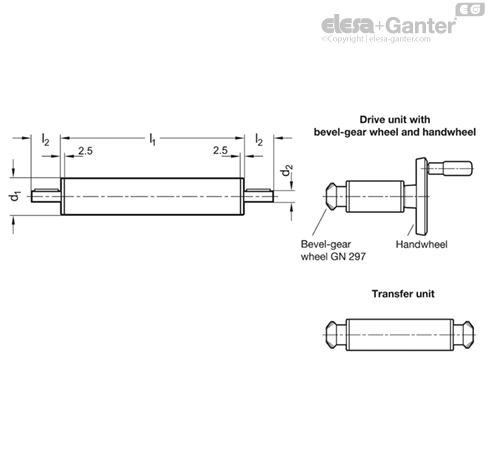

Transfer units GN 391 are normally used in connection with linear actuators. They are designed to transfer the rotary movement for operating the linear actuators to another or a further position.

The transfer unit in the standard length l1 is a special design: It is designed to turn the operating axis for the linear actuators (handwheel) by 90° together with an angular gear.

As in linear actuators, digital position indicators can be fitted.

  • Bevel gear wheels, handwheels, tube clamp connectors and accessory have to be ordered seperately.

  • Assembly and application examples of Transfer units



Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.

The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.



Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.

The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.
