GN 296

Installation kits

for position indicators used on square linear actuators GN 291.1

GN 296

Installation kits
Installation kits

GN 296

Installation kits
Installation kits

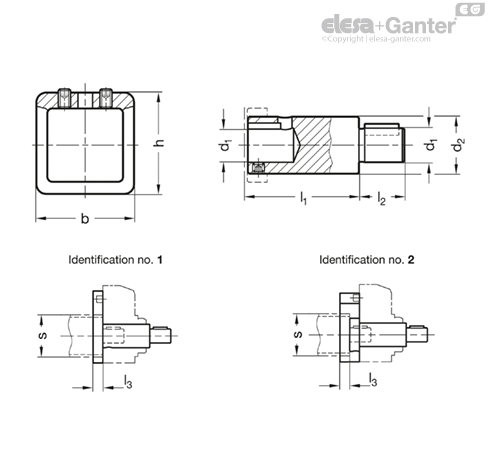

Coding

  • Coding 1: for mechanical position indicators DD51  / DD52R)

Adaptor shaft

Steel

blackened

Torque support

Aluminium

blank, ground

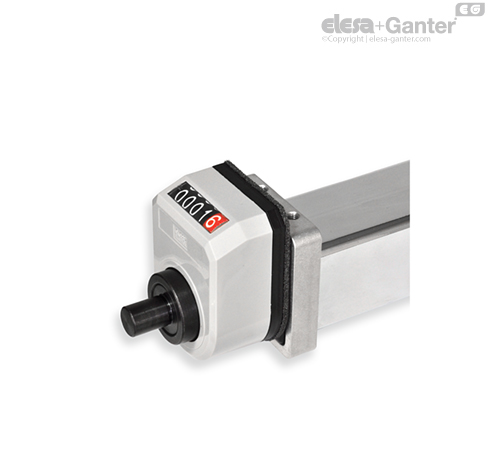

The GN 296 installation kits are needed for mounting a position indicator on linear units. The installation kits comprise an adapter shaft and a torque support including attachment screws.

Order mechanical position indicators DD52R / DD51 / DD50 with a counter pitch that corresponds to that of the trapezoidal threaded spindle.

For position indicators DD52R-E / DD51-E, the position indicator pitch is programmed.

  • Position indicators and handwheels have to be ordered seperately.
