GN 291.1

Square Linear Actuators

with Right or Left Hand Thread

GN 291.1

Square Linear Actuators

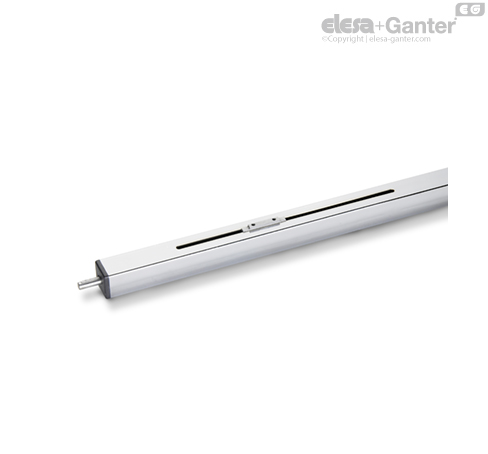

Square linear actuators

GN 291.1

Square Linear Actuators
Square linear actuators

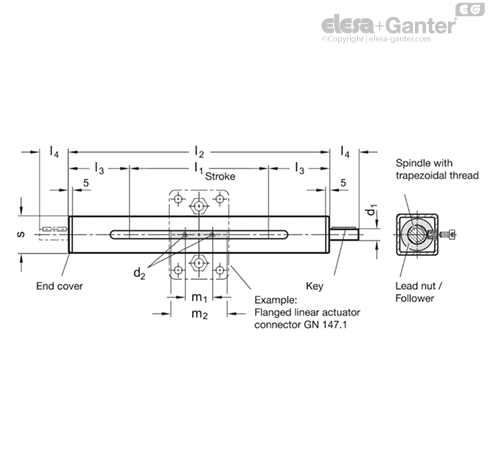

Types

  • Type R1: Right hand thread, shaft journal at one end
  • Type R2*: Right hand thread, shaft journal at both ends
  • Type L1: Left hand thread, shaft journal at one end
  • Type L2*: Left hand thread, shaft journal at both ends

* usually not available from stock

Square tube

  • Steel, chrome-plated SCR
  • Stainless steel AISI 304 NI*

Spindle with trapezoidal thread

  • Steel respectively Stainless steel AISI 303
  • Ball bearing

Lead nut

Gunmetal

End plug

Plastic

Square linear actuators GN 291.1 are used if the linear actuator connectors are exposed to high torsion forces.

In addition to the standard stroke lengths specified in the above table for linear actuators any stroke inside the maximum stroke length is available.

By means of linear actuator connectors, the linear movement of the lead nut can be transmitted externally via a follower. The followers are included with the respective linear actuator connectors. In addition, the tube clamp connector range contains many different parts for mounting the linear actuators.

In order to measure the displacement and positioning of the linear actuator connectors, the square tube can be provided with a longitudinal scale.

  • Linear actuator connectors, tube clamp connectors and accessory have to be ordered separately.
