GN 273.1

Swivel clamp linear actuator connectors

for linear actuators Ø18

GN 273.1

Swivel clamp linear actuator connectors
Swivel clamp linear actuator connectors

GN 273.1

Swivel clamp linear actuator connectors
Swivel clamp linear actuator connectors

Identification No.

No. 2: With stainless steel socket cap srew DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Sleeve bearing

Plastic (PTFE)

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

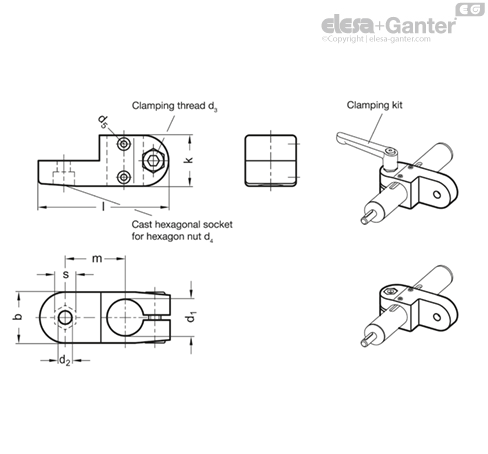

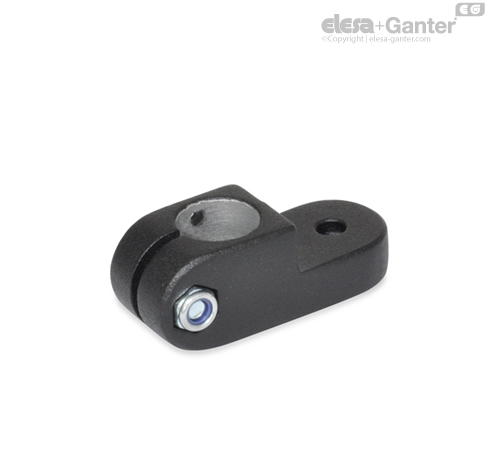

Swivel clamp linear actuator connectors GN 273.1 are based on swivel clamp connectors. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation „G“ are equipped with sleeve bearings.

With the screw location z, the play of the guide bore d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screw can be replaced by an adjustable hand levers GN 911  listed in the table as accessory.

  • Adjustable Hand Levers GN 911
