GN 165.1

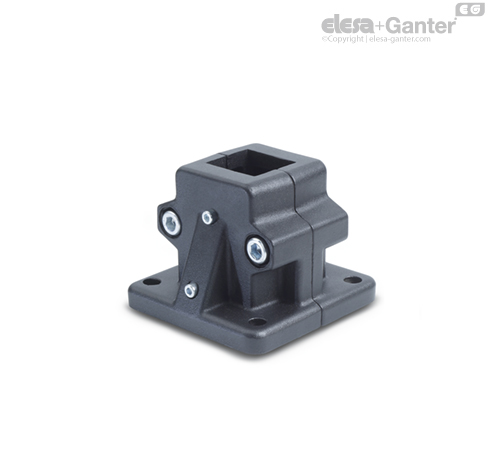

Linear actuator connectors

Aluminum, Split Assembly

GN 165.1

Linear actuator connectors
Linear actuator connectors

GN 165.1

Linear actuator connectors
Linear actuator connectors

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

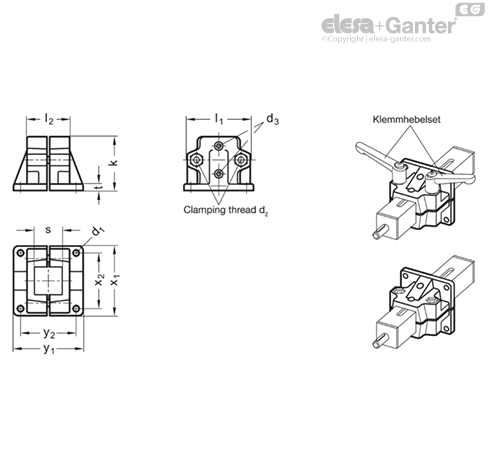

Base plate linear actuator connectors GN 165.1 are based on base plate connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.

With the screw location z, the play of the guide bores d1 / s can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

  • Adjustable Hand Levers GN 911

  • Stainless Steel Characteristics
