GN 162.1

Base plate linear actuator connectors

Aluminum / Stainless Steel, with 4 Mounting Holes

GN 162.1

Base plate linear actuator connectors
Aluminium

GN 162.1-AL

Base plate linear actuator connectors
Aluminum

GN 162.1-NI

Base plate linear actuator connectors
Stainless Steel

GN 162.1

Base plate linear actuator connectors
Aluminium

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

Version in Aluminium

plastic coated

black, RAL 9005, textured finish SW

Version in Stainless Steel AISI CF-8 NI

  • matt shot-blasted
  • Bore only with slide bushing (G18)

Guide bore mechanically machined

Slide bushing

Polyamide

Socket cap screw DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

GN 162.1 base plate linear actuator connectors are normally supplied mounted only in connection with a linear actuator and for function control.

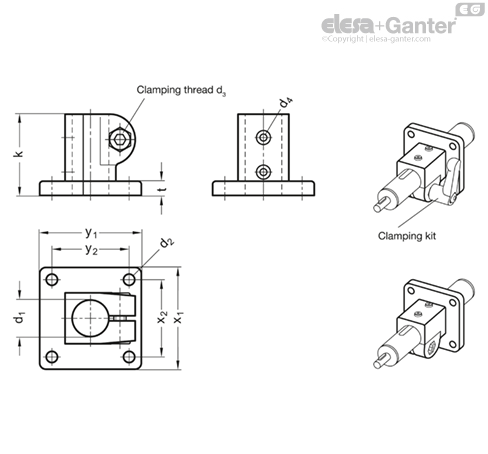

By means of the clamping screw on the guide bore d1 the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit  GN 911  (article code see table of dimensions).
