GN 146.1

Flanged linear actuator connectors

Aluminium, for linear actuators Ø30, Ø40, Ø50, Ø60

GN 146.1

Flanged linear actuator connectors
Flanged linear actuator connectors

GN-146.1

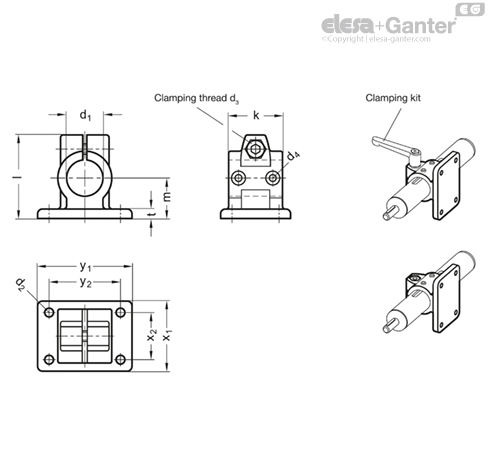

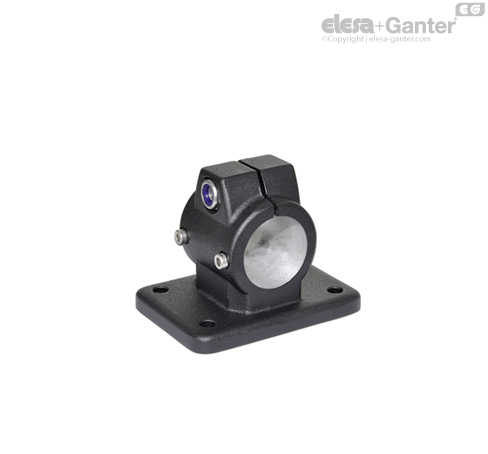

Flanged linear actuator connectors

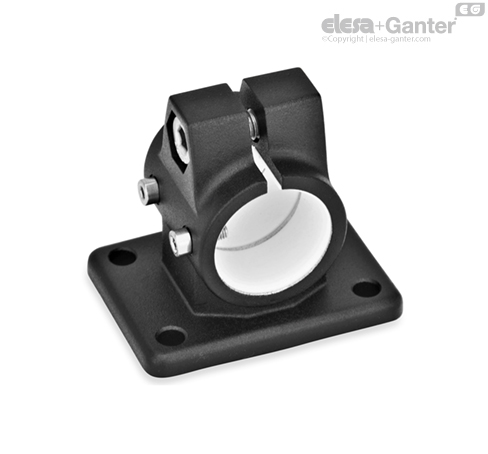

With sleeve bearing

GN 146.1

Flanged linear actuator connectors
Flanged linear actuator connectors

Identification no.

No. 2: With stainless steel socket cap srew DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Sleeve bearing

Plastic (PTFE)

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Flanged linear actuator connectors GN 146.1 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

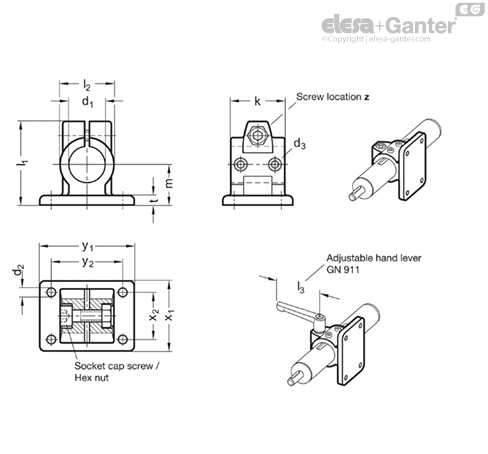

With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

  • Adjustable Hand Levers GN 911
