GN 134.1

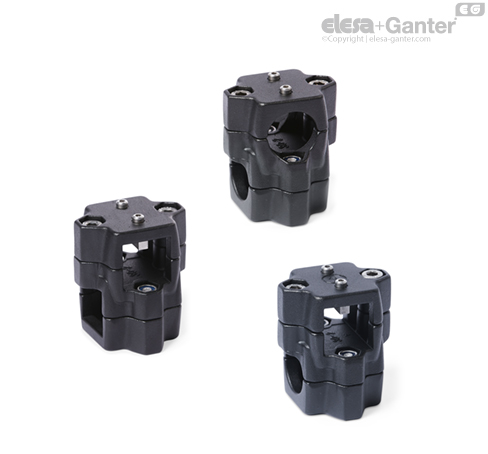

Two-Way Linear Actuator Connectors

Aluminum, Multi Part Asssembly, for One-Axis system

GN 134.1

Two-Way Linear Actuator Connectors
Linear actuator connectors

GN 134.1

Two-Way Linear Actuator Connectors
Linear actuator connectors

Identification no.

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish S

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Two-way linear actuator connectors GN 134.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.

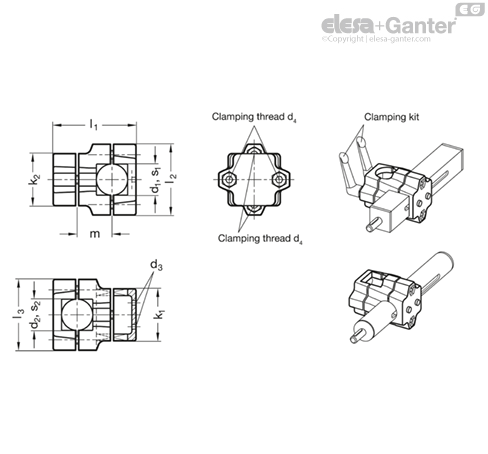

The mounting holes d3 for the drive key are always located in the bore d1 or the square s1 in the one-axis system. Centering bushings in the through-hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators.

The clamping squares s2 are supplied not machined in the one-axis design.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

  • Adjustable Hand Levers GN 911
