GN 900.4

Mounting plates

for adjustable slide units GN 900

GN 900.4

Mounting plates
Mounting plates

GN 900.4

Mounting plates
Mounting plates

Types

  • Type A: without retaining bores
  • Type B: with retaining bores for rotary tables

Aluminium

anodized, natural colour

Socket head cap screws DIN 912

Stainless Steel

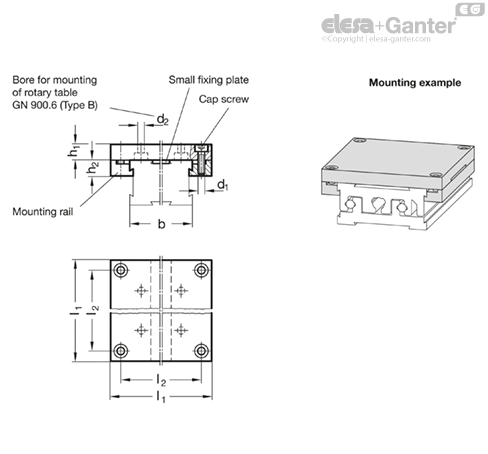

Mounting plates GN 900.4 type A are used for installing fixtures on the operator’s side. Type B is used for installing a rotary table GN 900.6

The mounting plate can be simply clamped on to the slide and no additional drilled holes are required.

The small fixing plates serves as an additional fine adjustment of the mounting plate with the adjustable slide unit.

All parts required to make up a set are included.
