GN 6311.6

Leveling Feet

Stainless Steel

GN 6311.6

Leveling Feet
Stainless Steel-Levelling feet

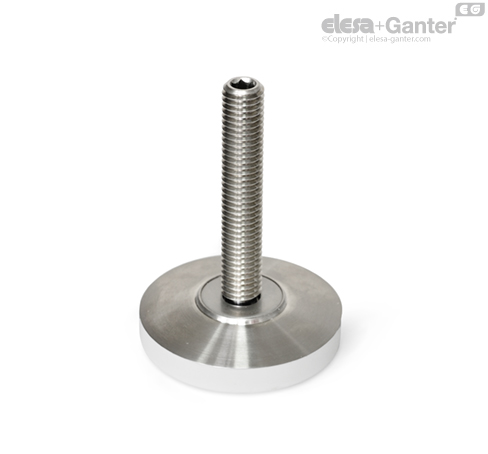

GN 6311.6-G

Leveling Feet
With plastic cap, gliding

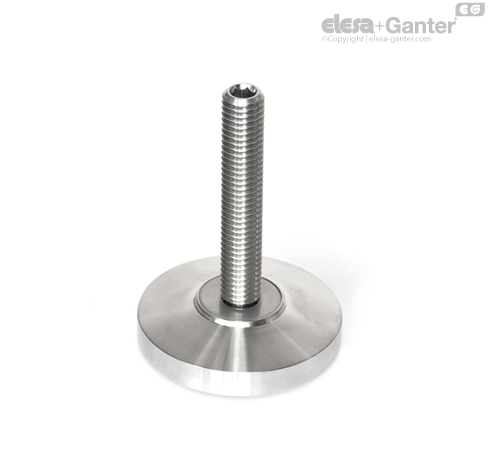

GN 6311.6-N

Leveling Feet
Without plastic cap

GN 6311.6-R

Leveling Feet
With plastic cap, non-gliding

GN 6311.6

Leveling Feet
Stainless Steel-Levelling feet


  • Type OS: Without plastic cap
  • Type KS: With plastic cap, gliding
  • Type KR: With plastic cap, non-gliding

Stainless Steel AISI 304

Retaining spring

Stainless steel AISI 301

Plastic caps

Type KS

Technopolymer (Polyacetal POM)

White (natural color) RAL 9001

Type KR

Elastomer (TPE)

Hardness ≈ 75 Shore A


Leveling Feet GN 6311.6 are used for installing and leveling devices and equipment.

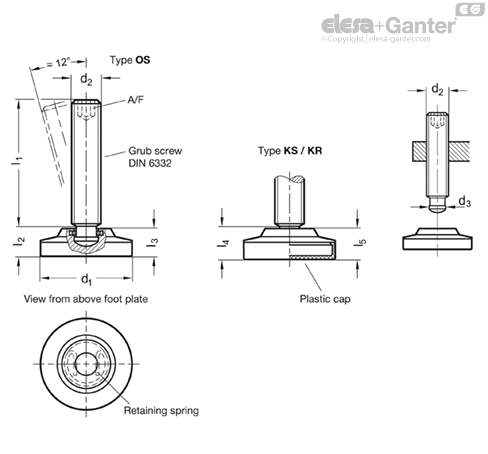

The pin diameter d3 is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining spring ensuring that the assembly is secure in axial direction.

The values listed in the table for static load capacity refer to a purely vertical load in relation to the leveling foot. Under normal operating conditions, bending loads or angular loads are not uncommon and result in a reduction of load capacity which must be taken into consideration.

  • Plastic characteristics
