GN 6311.4

Leveling Feet

Steel

GN 6311.4

Leveling Feet
Levelling feet

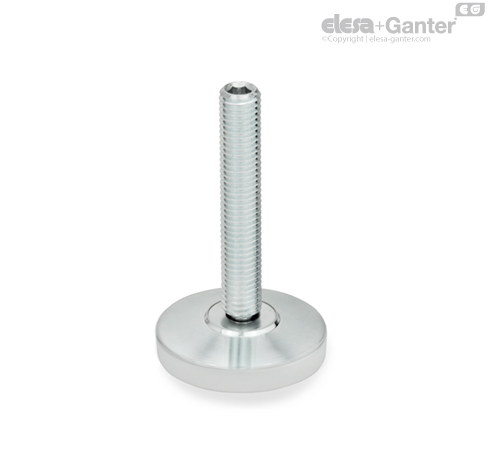

GN 6311.4-G

Leveling Feet
With plastic cap, gliding

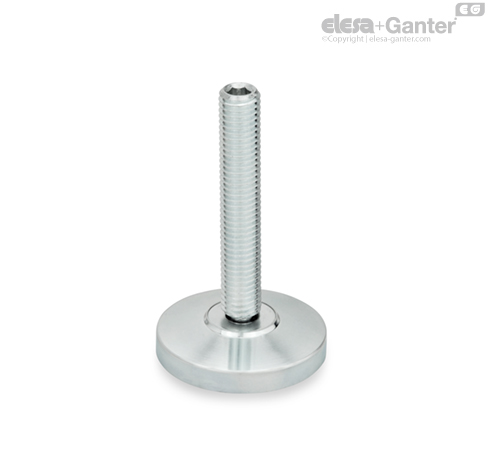

GN 6311.4-N

Leveling Feet
Without plastic cap

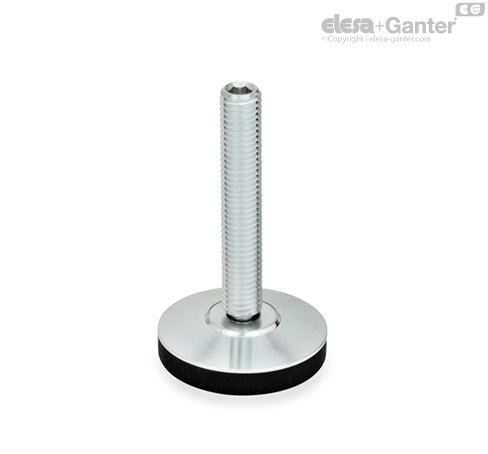

GN 6311.4-R

Leveling Feet
With plastic cap, non-gliding

GN 6311.4

Leveling Feet
Levelling feet

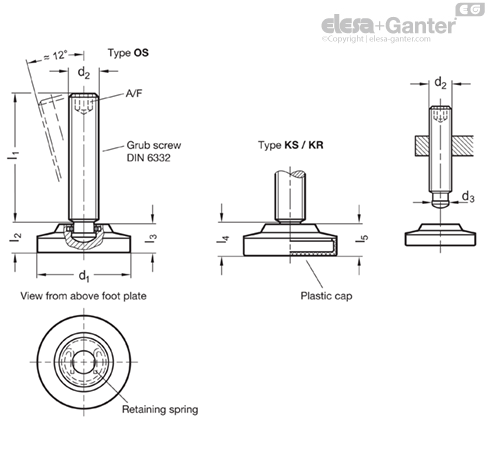

Types

  • Type OS: without plastic cap
  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Plastic caps:

Type KS

Technopolymer (Polyacetal POM)

white (natural colour) RAL 9001

Type KR

Elastomer (TPE)

78 Shore A ≈, black

Levelling feet GN 6311.4 are normally used when a thread is present at the machine side to adjust the height.

The pin diameter d3 is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining ring ensuring that the assembly is secure in axial direction.

The static load of the levelling feet GN 6311.4 is limited by the laod capacity of the grub screw (Tensile strength class 5.8). The static load values (only valid for Type OS/KS) in the table refer to a net vertical load in relation to the ball socket. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerable reduced which must be taken into consideration.
