GN 41

Stainless Steel-Levelling feet

without fixing lug

GN 41-S/SK

Stainless Steel-Levelling feet
with/ without nut, External hexagon at the bottom

GN 41-T/TK

Stainless Steel-Levelling feet
with/ without nut, Wrench flat at the bottom, "not dipping" version

GN 41-U/UK

Stainless Steel-Levelling feet
with/ without nut, Hexagon socket at the top, Wrench flat at the bottom

GN 41-V/VK

Stainless Steel-Levelling feet
with/ without nut, External hexagon at the top, Wrench flat at the bottom

GN 41-W

Stainless Steel-Levelling feet
with adjustable sleeve, Wrench flat at the bottom

GN 41-X

Stainless Steel-Levelling feet
with female thread, External hexagon

GN 41-S/SK

Stainless Steel-Levelling feet
with/ without nut, External hexagon at the bottom

Types (Base plate)

  • Type D0: Without rubber pad
  • Type B0: Without rubber pad, with 2 mounting holes
  • Type D1: With rubber pad, clipped on, black
  • Type D3: With rubber pad, vulcanized, black

Version (Screw)

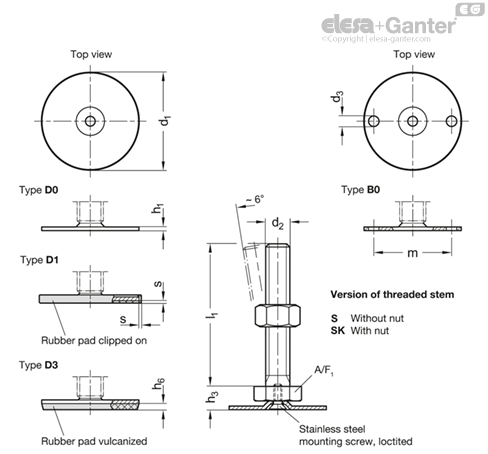

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom

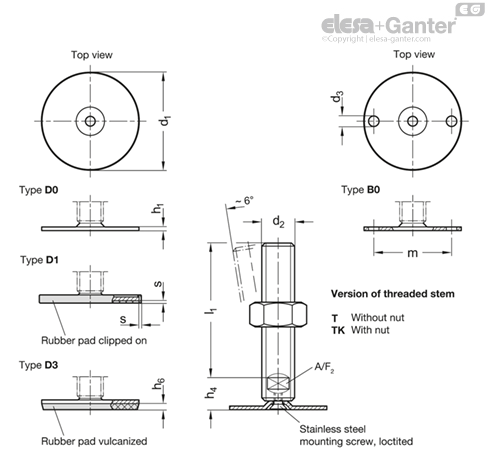

  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom

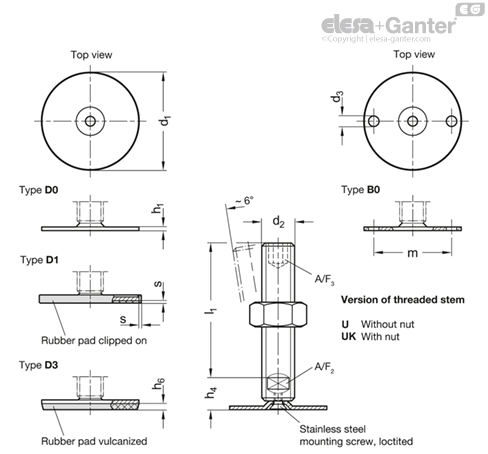

  • Version U: Without nut, hex socket at the top and wrench flat at the bottom
  • Version UK: With nut, hex socket at the top and wrench flat at the bottom

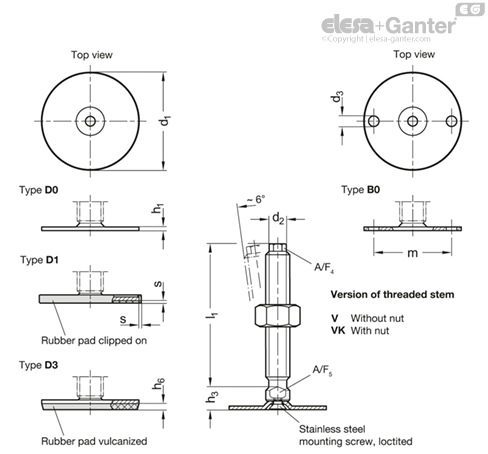

  • Version V: Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom

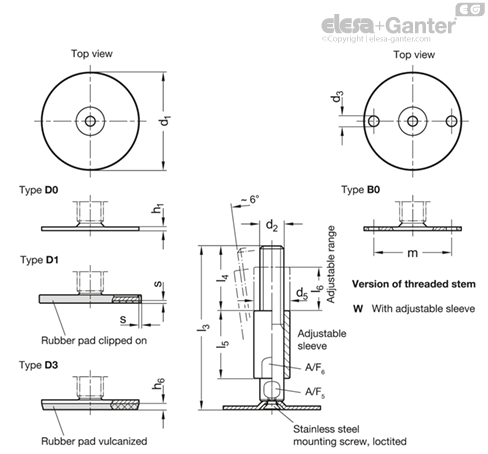

  • Version W: With adjustable sleeve, covered thread and wrench flat at the bottom

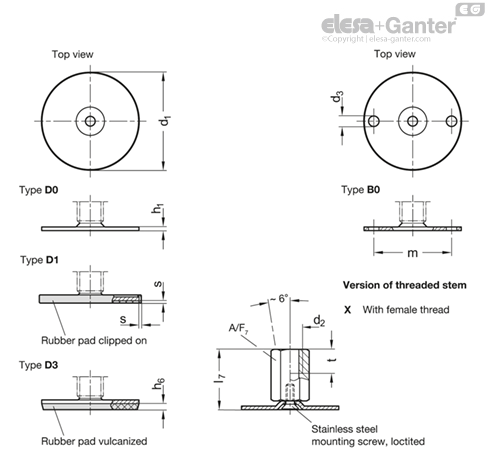

  • Version X: External hex with internal thread

Base plate

Stainless steel AISI 304

Blank ground

Threaded stem

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel

Rubber pad

Clipped on

Black, TPE (Santoprene®)

≈ 80 Shore A

Rubber pad

Vulcanized

Black, NBR (Perbunan®)

70 ± 5 Shore A

Leveling feet GN 41 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feet to be used in every situation.

The base plate with the rubber pad protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.


d1--d2Static load in kN----
GN 41 / GN 44GN 43 / GN 45GN 43-Versions of threaded stem----
-Drop shapeRectangular shape-S / SKT / TK and U / UKV / VKWX
40--M 88---8
40--M 1012---12
40--M 1212---12
40--M 16-12--12
5050-M 88---8
5050-M 1014---14
5050-M 1214---14
5050-M 16-14--14
6060-M 88---8
6060-M 1014---14
6060-M 1216---16
6060-M 16-16161616
808080M 88---8
808080M 1014---14
808080M 1220---20
808080M 16-20202020
808080M 20-20202020
808080M 24-222222-

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2.

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem
____logo__40_NA-22235-0______logo__41_NA-22245-0______logo__40_NA-22237-0__
S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24
____logo__41_NA-22247-0______logo__41_NA-22249-1______logo__40_NA-22239-0__
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24W: Covered thread and wrench flat at the bottom at d2 M 16, M 20, M 24X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20
