GN 30

Levelling feet

with Rubber Pad

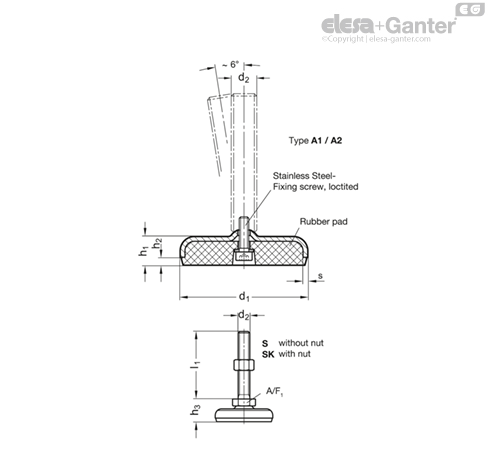

GN 30-S/SK

Levelling feet
with/ without nut, External hexagon at the bottom

GN 30-U/UK

Levelling feet

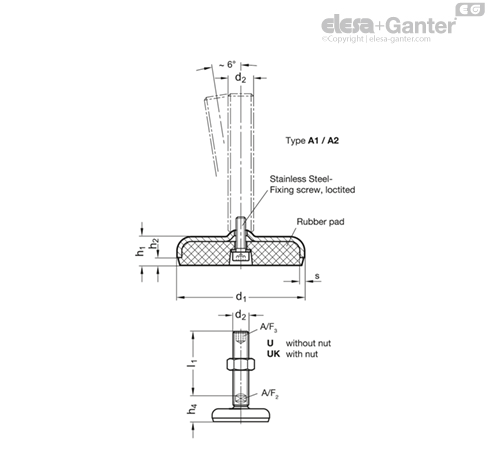

with nut/without nut, Hexagon socket at the top, Wrench flat at the bottom

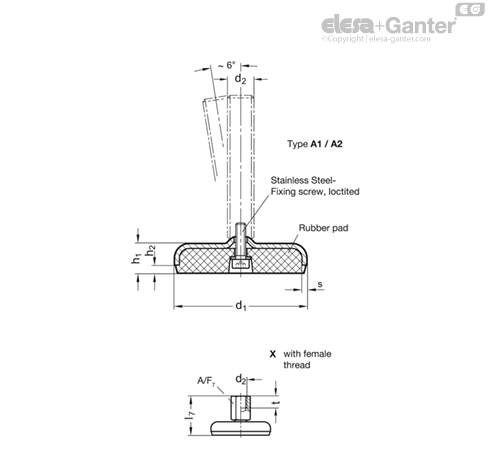

GN 30-X

Levelling feet
with female thread, External hexagon

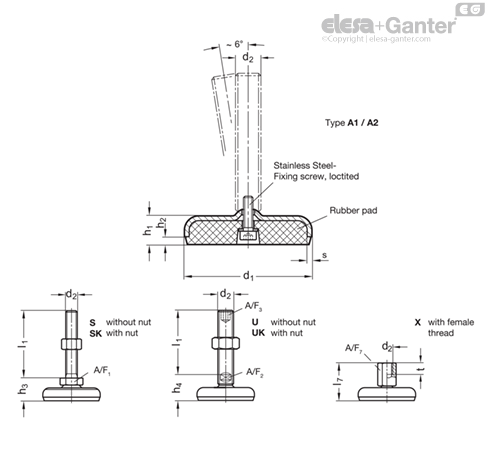

GN 30-S/SK

Levelling feet
with/ without nut, External hexagon at the bottom

Types (Base)

  • Type A1: Steel, zinc plated, rubber, inlaid black
  • Type A2: Steel, zinc plated, rubber, inlaid white
  • Type A5: Steel, plastic coated black, rubber inlaid, black

Version (Screw)

  • Version S: without nut, external hexagon at the bottom
  • Version SK: with nut, external hexagon at the bottom
  • Version U: without nut, hexagon socket at the top, wrench flat at the bottom
  • Version UK: with nut, hexagon socket at the top, wrench flat at the bottom
  • Version X: external hexagon, female thread

Base plate, steel sheet metal

Type A1, A2:

Steel, zinc plated, blue passivated

Type A5:

Steel, plastic coated

Threaded stem

Steel, zinc plated, blue passivated

Hexagon nut ISO 4032

Steel, zinc plated, blue passivated

Rubber underlay, inlaid

  • black: Perbunan® (NBR) 80±5 Shore A
  • white: Perbunan® (NBR) 80±5 Shore A

Levelling feet GN 30 will be delivered mounted and are not removable.



Information

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate. For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2.

The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

d1d2Static load in kN-----
--Versions of threaded stem-----
--S / SK-U / UK-X-
--Rubber blackRubber whiteRubber blackRubber whiteRubber blackRubber white
50M 888--88
50M 101010--1313
50M 121212--1613
50M 16--16131613
60M 888--88
60M 101010--1313
60M 121212--1613
60M 16--16131613
80M 888--88
80M 101010--1211
80M 121212--1211
80M 16--12111211
80M 20--12111211
80M 24--1211--
100M 888--88
100M 101010--1110
100M 121110--1110
100M 16--11101110
100M 20--11101110
100M 24--1110--
120M 20--20162016
120M 24--2016--
120M 30--2016--
