GN 17

Leveling Feet

Stainless Steel AISI 304, FDA compliant

GN 17-S/SK

Leveling Feet
With / without nut, external hex at the bottom

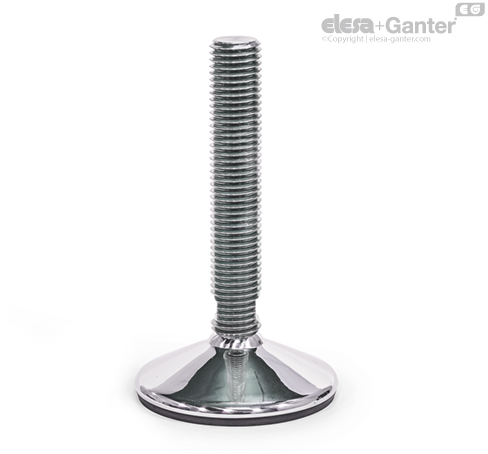

GN 17-T/TK

Leveling Feet
With / without nut, wrench flat at the bottom

GN 17-V/VK

Leveling Feet
With / without nut, external hex at the top and wrench flat at the bottom

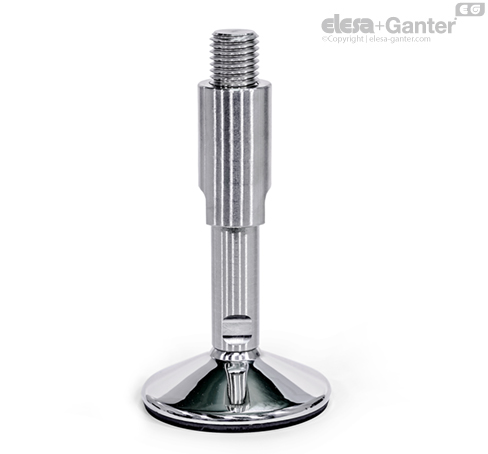

GN 17-W

Leveling Feet
With adjustable sleeve, covered thread, wrench flat at the bottom

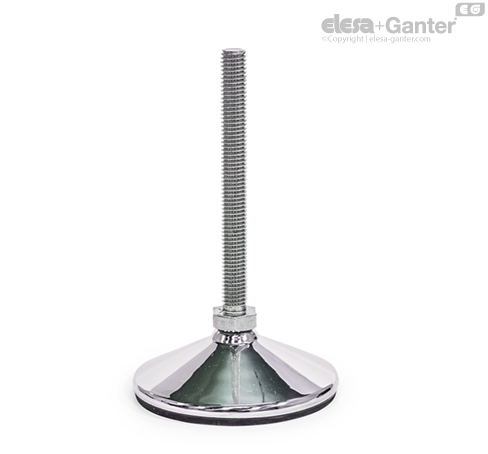

GN 17-S/SK

Leveling Feet
With / without nut, external hex at the bottom

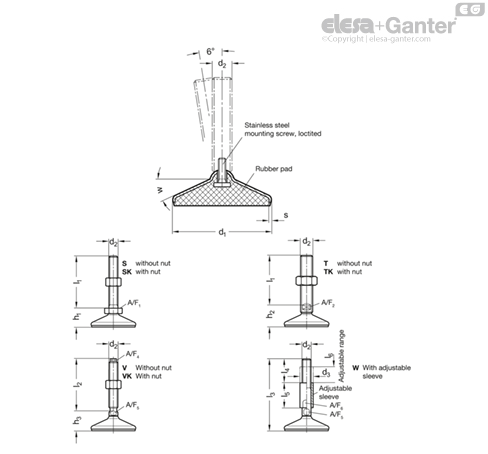

Type (Base plate)

  • Type C3: Polished, rubber vulcanized, black

Versions of threaded studs

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom
  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom
  • Version V : Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom
  • Version W: With adjustable sleeve, covered thread and wrench flat at the bottom

Base plate

Stainless steel AISI 304

Threaded stud

Stainless steel AISI 303

Hex nut ISO 4032

Stainless steel AISI 304

Rubber pad

Acrylonitrile butadiene rubber (NBR)

  • Black
  • FDA-compliant
  • Hardness 85±5 Shore A
  • Vulcanized

Leveling feet GN 17 are suitable for use in aggressive environments.

The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA-compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example.

The leveling feet are supplied assembled and cannot be disassembled.

  • Rubber pad available in various colors


d1d2Static load Fs in kN---
--Versions of threaded studs---
--S / SKT / TKV / VKW
60M 88---
60M 108---
60M 1214---
60M 16-141414
80M 88---
80M 108---
80M 1214---
80M 16-141414
80M 20-323232
80M 24-363636
100M 88---
100M 108---
100M 1216---
100M 16-242424
100M 20-262626
100M 24-282828
120M 20-26--
120M 24-26--
120M 30-26--

The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.

Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.

Also, the spindle strength is assumed to be ≥ 500 N/mm2).

The details given on strength are non binding guide values without any liability. In general, they do not constitute a warranty of quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded studs
____logo__17_NA-39984-0______logo__17_NA-39980-0__
S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24, M 30
____logo__17_NA-39982-0______logo__17_NA-39978-0__
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24W: Covered thread and wrench flat at the bottom at d2 M 16, M 20, M 24
