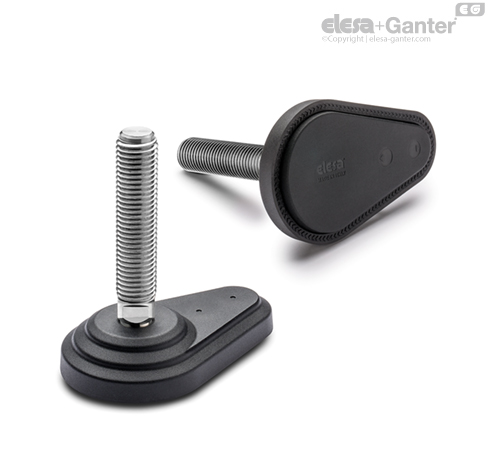

LVQ.FO-SST

Levelling elements for ground mounting

Technopolymer base, stainless steel stem

LVQ.FO-SST

Levelling elements for ground mounting
Levelling elements for ground mounting

LVQ.FO-SST

Levelling elements for ground mounting
Levelling elements for ground mounting

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

AISI 304 stainless steel articulated and threaded stem with adjusting square.

  • LVQ.FO-SST: base without no-slip disk.
  • LVQ.FO-AS-SST: base with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

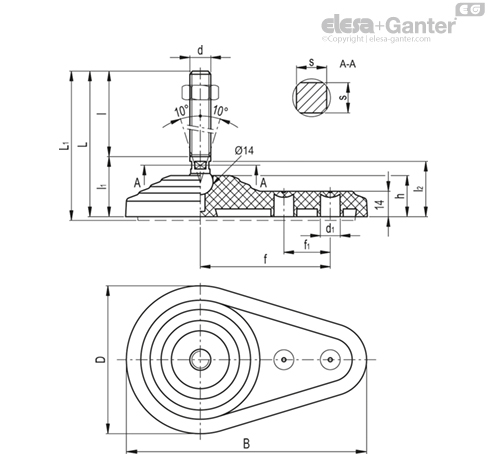

By means of two holes, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig. 1).



Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.-).
