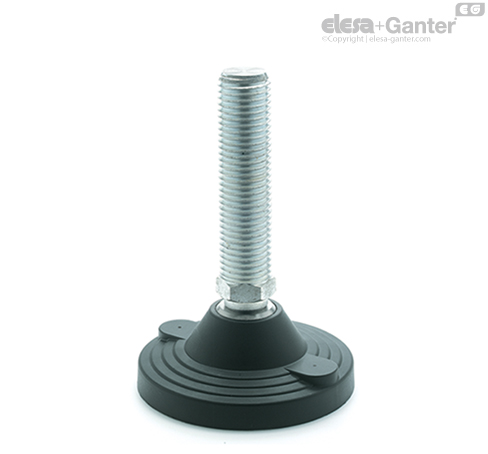

Levelling elements for ground mounting

Technopolymer base, steel stem


Levelling elements for ground mounting
Levelling elements for ground mounting


Levelling elements for ground mounting
Levelling elements for ground mounting


Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated through stem

Threaded zinc-plated steel with regulation hexagon.

Assembled to the base by means of zinc-plated steel set screw and washer.

Cup washer for stem bearing

Glossy zinc-plated steel.

Standard executions

  • LV.F-ACV: without no-slip disk.
  • LV.F-ACV-AS: with NBR rubber no-slip disk, hardness 90 Shore A, supplied assembled, reinforced with zinc-plated steel plate, fixed by means of two screws.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig. 1).



The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The components of the levelling elements (base and stem) are supplied already assembled.

Accessories on request

Zinc-plated steel nut (see Nuts NT.-).

Special executions on request

AISI 304 stainless steel stems.
