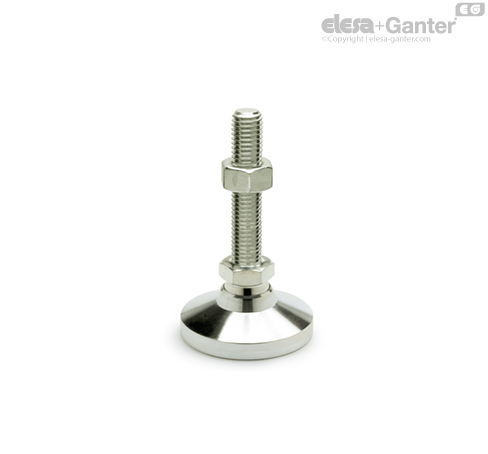

GN 343.6

Stainless Steel-Levelling feet

Adjustable spindle

GN 343.6

Stainless Steel-Levelling feet
Stainless Steel-Levelling feet

GN 343.6

Stainless Steel-Levelling feet
Stainless Steel-Levelling feet

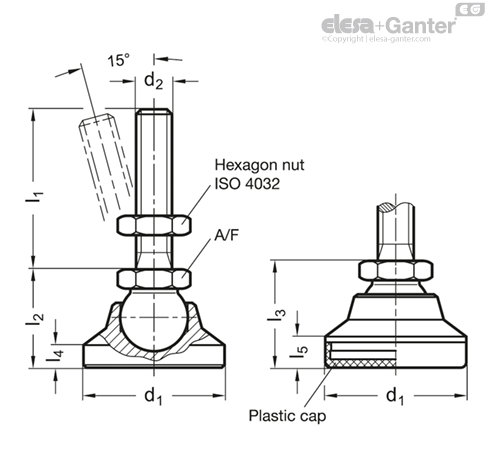

Types

  • Type OS: without plastic cap
  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding
  • Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
  • Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)

Stainless Steel AISI 303

Type KS / KSE

Plastic cap Polyacetal (POM)

KS: white (natural colour) RAL 9001

KSE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

Type KR / KRE

Plastic cap Elastomer (TPE), 78 Shore A ≈

KR: black

KRE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

Hexagon nut ISO 4032

Stainless Steel AISI 304

The static load of the Stainless Steel-Levelling feet GN GN 343.6 is limited by the load capacity of the ball joint / threaded stud (AISI 303).

The static load values (only valid for Type OS, KS and KSE) in the above table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Stainless Steel-Levelling feet GN 343.6 cannot be disassembled.
