GN 148.2

Rubber pads

for levelling feet GN 148

GN 148.2

Rubber pads
Rubber pads

GN 148.2

Rubber pads
Rubber pads

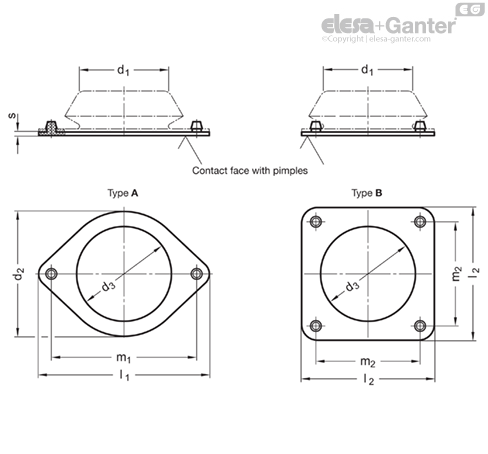

Types

  • Type A: for two-hole flange (d1 = 60 / 90 / 113)
  • Type B: for four-hole flange (d1 = 113 / 126)

Rubber (NBR)

  • Hardness 68 Shore A ±5, black
  • oil resistant

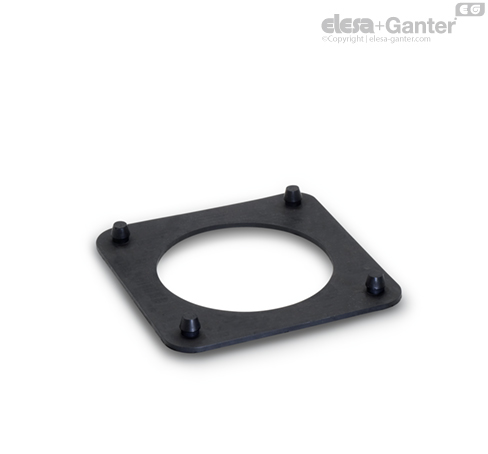

Rubber pads GN 148.2 in connection with GN 148  levelling feet are used for setting up machines and units if no firm bolt connection to the ground is required.

To be fixed to the levelling foot, they are snapped into the attachment bore holes of the flanges. Small pimples at the bottom face of the rubber pads enhance the stability.
