NDL.Q

End-caps for square tubes

Technopolymer

NDL.Q

End-caps for square tubes
End-caps for square tubes

NDL.Q

End-caps for square tubes
End-caps for square tubes

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

DIN 934 zinc-plated steel nut (included in the supply).

Features and applications

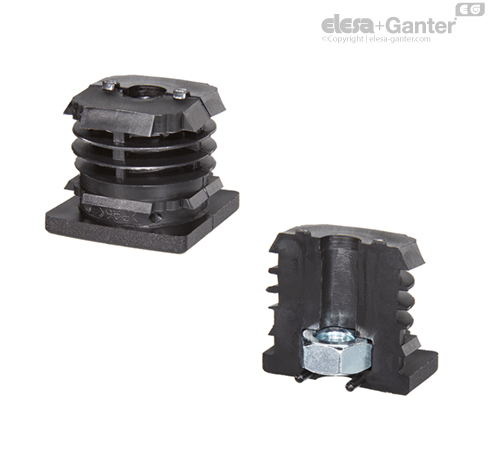

The two end-cap parts are connected together by means of two pins which are housed in special counter-seats. A cavity inside the end-cap is provided for housing an hexagonal nut DIN 934.

The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.

Special executions on request

End-cap without nut.
