PR-CH

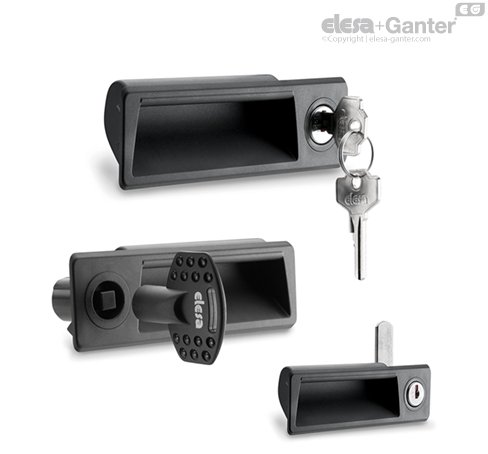

Flush pull handles with lever latch

Snap-in assembly, technopolymer

PR-CH

Flush pull handles with lever latch
Flush pull handles with lever latch

PR-CH

Flush pull handles with lever latch
Flush pull handles with lever latch

Handle and stator

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Two keys

Nickel-plated brass or polyamide based (PA) technopolymer.

Standard executions



Technical data

The lifting (F1) and pull out (F2) resistance values reported in the table are the result of tests carried out in the laboratory with handles assembled on metal sheet panels with thickness = 1.5 mm.



Assembly instructions

  1. Drill the handle housing according to the template dimensions reported in the table.
  2. Remove all drilling burrs before fitting the handle.
  3. Fit the upper part of the handle into the housing (Fig. 1).
  4. Press onto the lower part until the handle is completely snapped in (Fig. 2).


sxy
0.7÷1110+0.330.5+0.1
1÷1.5110+0.330.7+0.1
1.5÷2110+0.331.7+0.1
2÷2.2110+0.331.7+0.1

Accessories on request (to be ordered separately)

Closing lever LPR
