GN 720

Stop lock

with 4 indexing positions (4 x 90°)

GN 720

Stop lock
Stop lock

GN 720

Stop lock
Stop lock

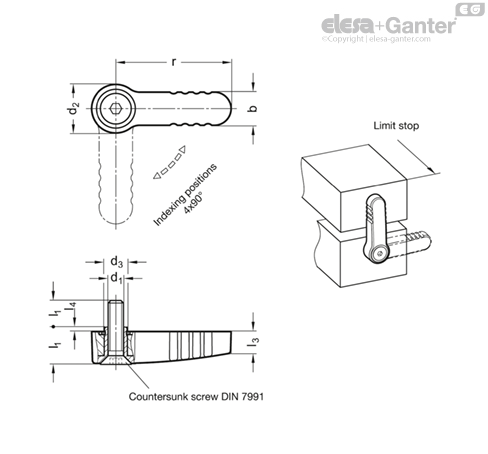

Type A: Mounting with countersunk screw


Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Indexing mechanism

Stainless Steel

Countersunk screw DIN 7991

Stainless Steel (A2)

Stop locks GN 720 may be used as stops and feature a high degree of stability.

The inside ball-spring latching mechanism has 4 latching positions at a distance of 90° each. Thanks to the bolt attachment using the countersunk screw, the latching position is freely selectable.

The bar is solid and may be machined, if required.

The countersunk screw is enclosed as part of the set.
