Type B: Snap on spring pin

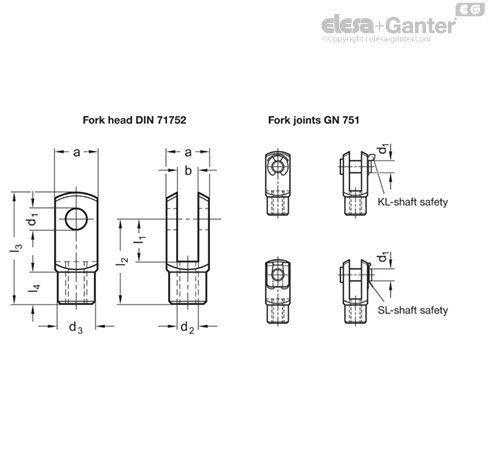

Type KL: Pin with KL-shaft safety
Type SL: Pin with SL-shaft safety
(only for d1 = 4 ... 16)
KL- / SL-shaft safetys
Stainless Steel AISI 303 NI

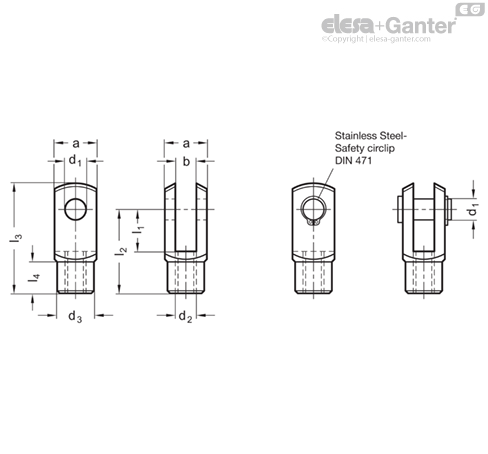

Safety circlip DIN 471
German Material No. 1.4122
Fork joints GN 751 consist of a fork head according DIN 71752 and a pin with KL-shaft (Type KL and SL) a pin with snap-on spring (Type B). Both versions can be dismantled without tools and moniter.
Size d1 = 12 is supplied with a fine thread M12x1.5 according to DIN. In practice, however, M12x1.25 is preferred. Standard DIN 71752 does not foresee size d1 = 20.
The snap-on spring pin is easily mounted and dismantled. It is therefore particularly suitable for applications where the articulated connection needs to be loosened often.
The pin with side mount ring can be fitted and dismantled without tools, i. e. by hand.
The pin with safety clip requires a tool for dismantling (e.g. a screw driver). It is therefore better secured.
