GN 240.2

Quick-fit couplings

with angle- and radial off-set compensation

GN 240.2

Quick-fit couplings
Quick-fit couplings

GN 240.2

Quick-fit couplings
Quick-fit couplings

Steel

  • tempered
  • phosphated

Retaining ring (spring)

Stainless Steel AISI 631

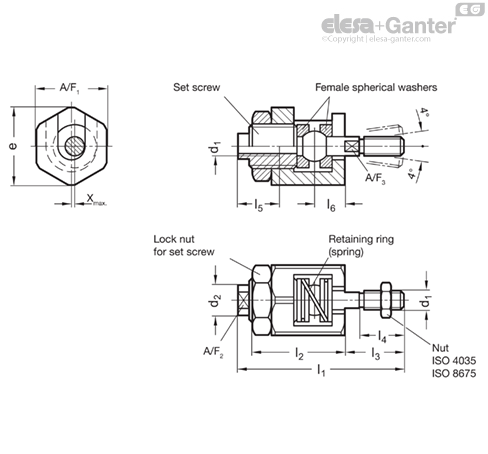

Quick-fit couplings GN 240.2 have been designed to compensate a radial and angular off-set. Furthermore they are axially freely adjustable via the set screw.

A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is renowned by its very compact construction without any loose components.

It is not designed for the transfer of torque.
