DIN 71802

Angled ball joints

Steel / Stainless Steel, with Threaded Ball Shank and Rivet Ball Shank

DIN 71802

Angled ball joints
Steel

DIN 71802-NI

Angled ball joints
Stainless Steel

DIN 71802

Angled ball joints
Steel

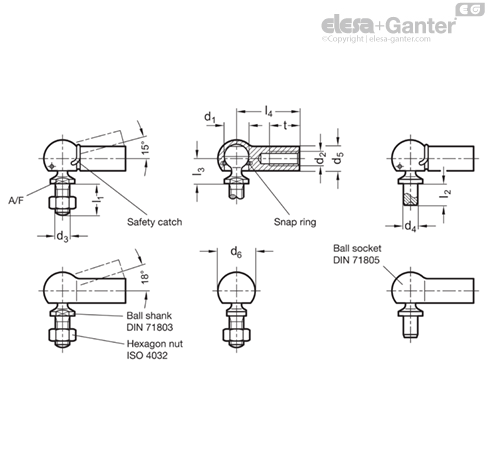

Version in Steel

Types

  • Type CS: with threaded ball shank with safety catch
  • Type C: with threaded ball shank without safety catch
  • Type BS: with rivet ball shank, with safety catch
  • Type B: with rivet ball shank, without safety catch

Steel

  • Tensile strength class 5
  • zinc plated, colorless passivated

Ball

Steel

  • hardened
  • ball seat lubricated

Version in Stainless Steel

Types

  • Type CSN: with threaded ball shank, with safety catch
  • Type CN: with threaded ball shank, without safety catch

Stainless Steel AISI 303

Ball

Stainless Steel

  • not hardened
  • ball seat greased

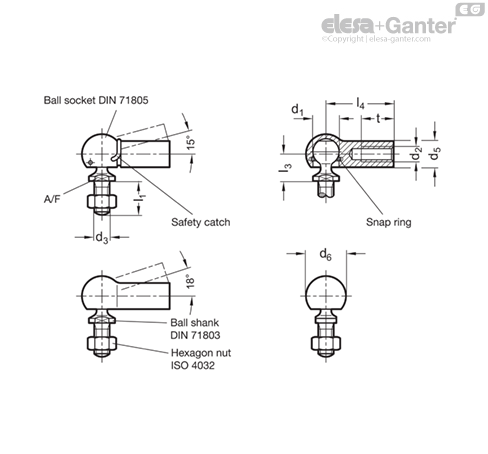

Angled ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball shank DIN 71803.

The angle of rotation for the type with safety catch (Types CS, BS, CSN) ist 15°, without safety catch (Types C, B, CN) is 18°.

For assembly the ball ist pushed through the circlip which acts as a retainer. Should the retaining force (see pull-off force in the table above) between ball and socket not be sufficient, this can be increased by adding a safety catch, which can easily be fitted.

To protect the angled ball point, a dust cap GN 710 can be added.

The hexagon nut is part of the angled ball joints.

  • smooth specification (Ball seat with play)
  • Ball studs DIN 71803
  • Ball sockets DIN 71805
  • Axial joints (ball socket and ball shank in one axis)
