GN 716

Side thrust pins

Press on type

GN 716

Side thrust pins
Side thrust pins

GN 716

Side thrust pins
Side thrust pins


  • Type ENI: one-sided, ball Stainless Steel
  • Type EKU: one-sided, ball Plastic
  • Type EST: one-sided, ball Steel
  • Type BST: both-sided, ball Steel

Housing Steel, blackened

Sleeve (for Ball)

  • Type ENI / EKU: Plastic
  • Type EST / BST: Steel, blackened


  • Type ENI: Stainless Steel
  • Type EKU: Plastic
  • Type EST / BST: Steel


  • Type ENI / EKU: Stainless Steel
  • Type EST / BST: elastic plastic

temperature resistant up to 80 °C

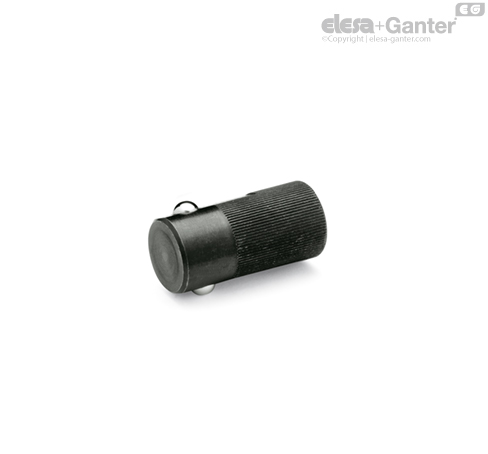

Side thrust pins GN 716 are designed for holding, positioning and locating a workpiece.

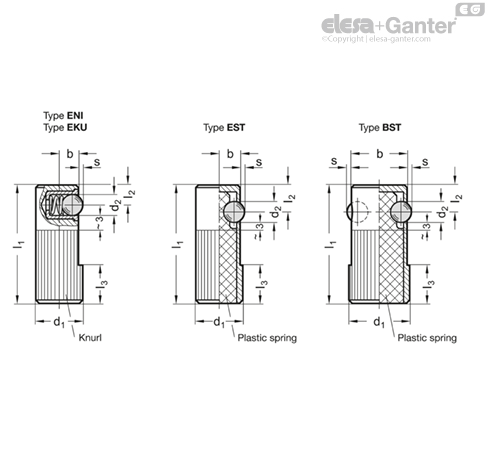

They have to pressed into the housing by a least the dimensions l3, so as to ensure a positive hold.
