GN 616

Spring plungers

Steel / Stainless Steel, with bolt / with internal hexagon

GN 616

Spring plungers
Spring plungers, Steel

GN 616-S/SS/K

Spring plungers
Steel

GN 616-SN/KN

Spring plungers
Spring plungers, Stainless Steel

GN 616

Spring plungers
Spring plungers, Steel

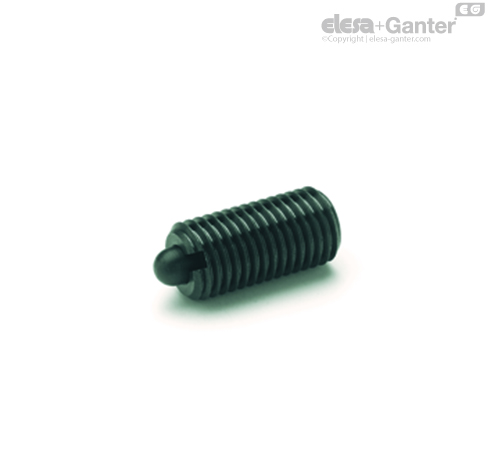

Version in Steel

Types

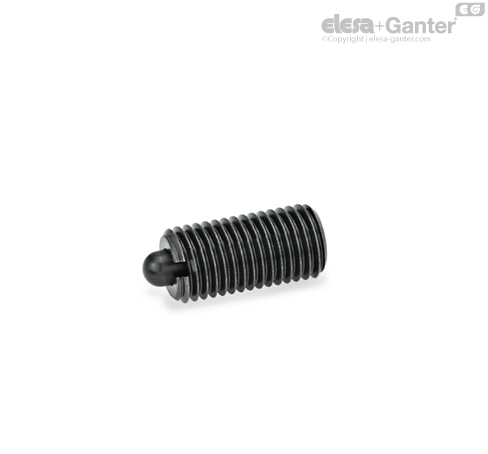

  • Type S: Bolt steel, standard spring load

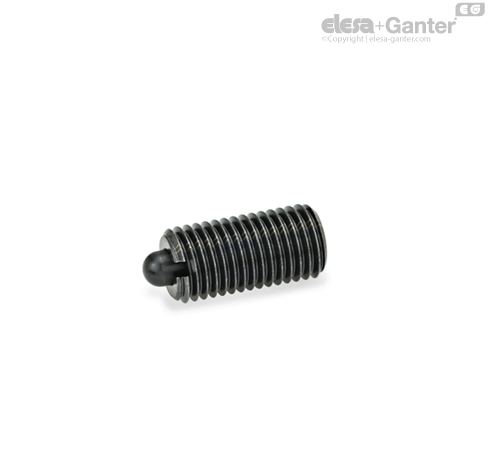

  • Type SS: Bolt steel, high spring load

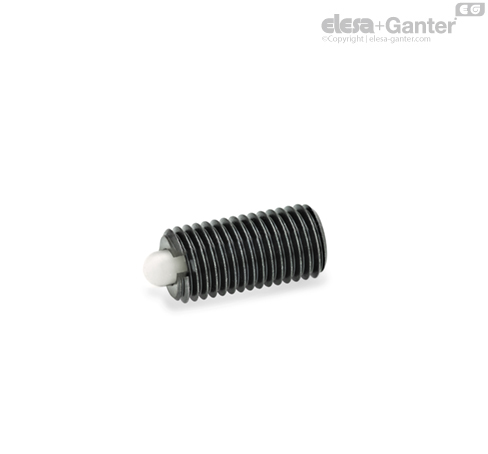

  • Type K: Bolt plastic, standard spring load

Housing

Steel, blackened

Type S / SS

Bolt

Steel, hardened

Type K

Bolt

Plastic (Polyacetal POM)

Temperature resistant up to 50 °C

Pressure spring

Stainless steel AISI 631

Identification of type SS:

Housing with 2 longitudinal markings

Version in Stainless Steel

Types

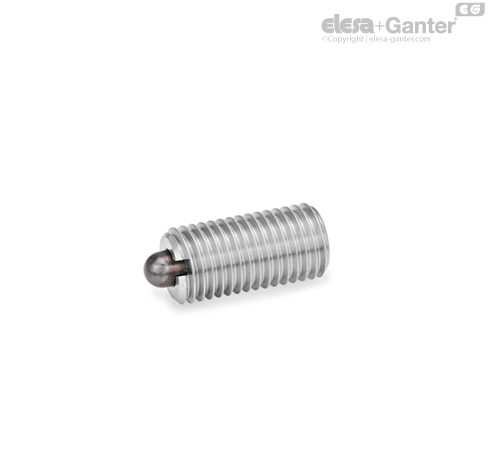

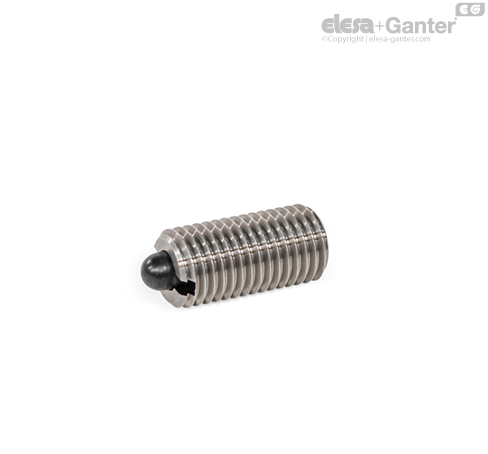

  • Type SN: Bolt stainless steel, standard spring load

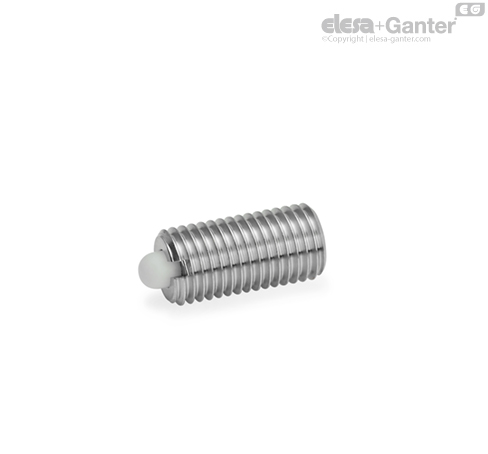

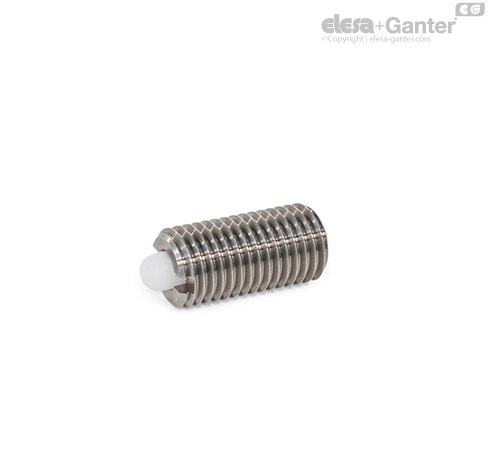

  • Type KN: Bolt plastic, standard spring load

Housing

Stainless steel AISI 303

Type SN

Bolt

Stainless steel AISI 303

Nitrided

Type KN

Bolt

Plastic (Polyacetal POM)

Temperature resistant up to 50 °C

Pressure spring

Stainless steel AISI 631

Spring plungers GN 616 are used as detents as well as for push-on and push-off applications and ejecetors.

The slot on the plunger side is provieded for blind hole applications. A special screw driver GN 611.5 is available (see table).

  • Screwdrivers GN 611.5 (Code no. see table)

  • With thread locking PFB / MVK
