GN 614

Spring Plungers

Stainless Steel / Brass / Plastic, Press-On Type, with Ball

GN 614-KD

Spring Plungers

GN 614-KU

Spring Plungers

GN 614-MS

Spring Plungers

GN 614-NI

Spring Plungers

GN 614-NIL

Spring Plungers
Stainless steel, light spring load

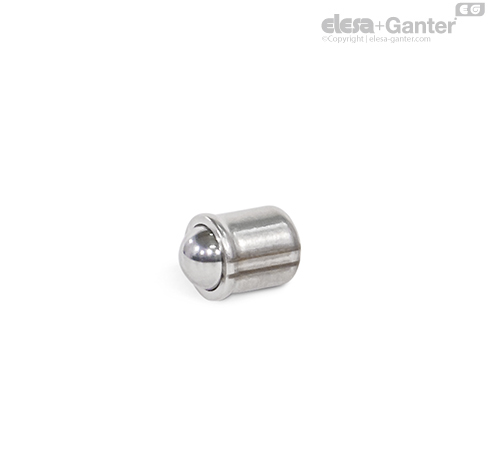

GN 614-NIS

Spring Plungers
Stainless steel, high spring load

GN 614-KD

Spring Plungers

Types
  • Type NI: Stainless steel, standard spring load
  • Type NIL: Stainless steel, light spring load
  • Type NIS: Stainless steel, high spring load
  • Type MS: Housing brass, ball stainless steel, standard spring load
  • Type KU: Housing plastic, ball stainless steel, standard spring load
  • Type KD: Housing plastic, ball plastic, standard spring load

Types NI / NIL / NIS

  • Housing
  • Stainless steel AISI 305
  • Sheet-metal
  • Ball
  • Stainless steel AISI 420C
  • Hardened

Identification

  • Type NIL: Housing with 1 longitudinal marking
  • Type NIS: Housing with 2 longitudinal markings

Type MS

  • Housing
  • Brass, turned
  • Ball
  • Stainless steel AISI 420C, hardened

Type KU

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Stainless steel AISI 420C, hardened

Type KD

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • White

Pressure spring

Stainless steel AISI 631

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.

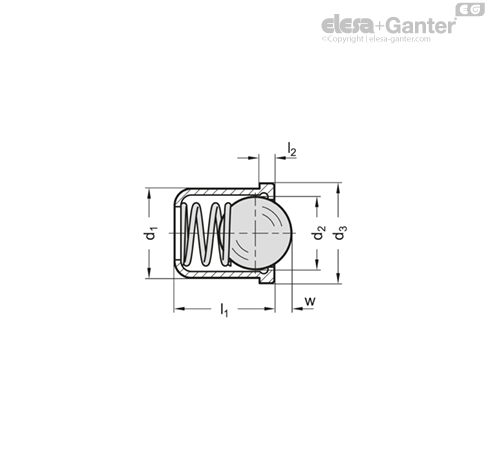

A tolerance of H7 for the location hole of d1 is recommended.
