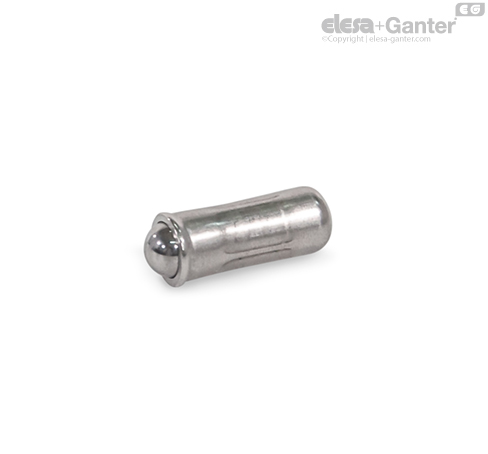

GN 614.7

Stainless Steel Spring Plungers

Press-Fit Type, Long Version, with Ball

GN 614.7

Stainless Steel Spring Plungers
Stainless Steel Spring Plungers

GN 614.7

Stainless Steel Spring Plungers
Stainless Steel Spring Plungers

Housing

Stainless steel AISI 305

Ball

Stainless steel AISI 420C NI

Hardened

Pressure spring

Stainless steel AISI 631

Press-fit stainless steel spring plungers GN 614.7 are used as detents as well as for push-on and push-off applications and ejectors.

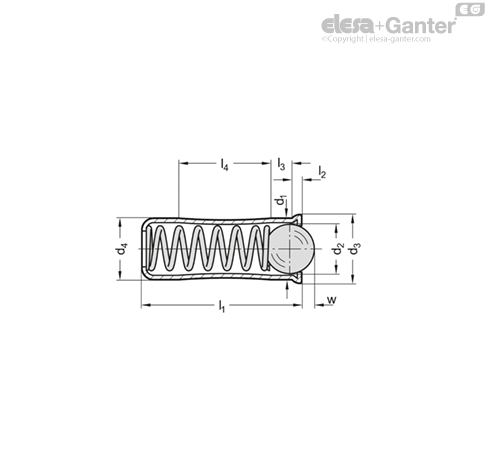

The tolerance d1 H7 is recommended for the locating bore.
