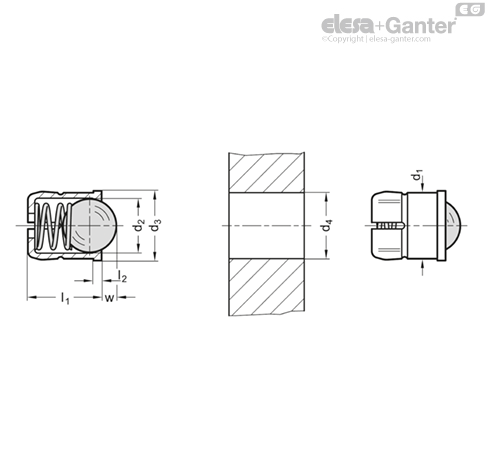

GN 614.5

Spring plunger

press on type, with ball

GN 614.5-KD

Spring plunger

GN 614.5-KU

Spring plunger

GN 614.5-KD

Spring plunger

Housing

Plastic (Polyacetal POM) KU

temperature resistant up to 50 °C

Ball

Stainless Steel

  • AISI 420C
  • hardened

Housing and ball

Plastic (Polyacetal POM) KD

temperature resistant up to 50 °C

Spring

Stainless Steel AISI 631

Spring plungers GN 614.5 are used as detents as well as for push-on and push-off applications and ejectors.

The geometric shape of the plastic housing generates a self-clamping function which compensates drill hole tolerances of as much as 0.2 mm. It also allows the hand-tightened assembly and makes overhead installation easier.
