GN 614.3

Stainless Steel-Spring plunger

with ball / without thread

GN 614.3

Stainless Steel-Spring plunger
Stainless Steel-Spring plunger

GN 614.3-NI

Stainless Steel-Spring plunger
Stainless steel, standard spring load

GN 614.3-NIS

Stainless Steel-Spring plunger
Stainless steel, high spring load

GN 614.3

Stainless Steel-Spring plunger
Stainless Steel-Spring plunger

Housing

Stainless Steel AISI 303 NI

Ball

Stainless Steel AISI 420C

hardened

Spring

Stainless Steel AISI 631

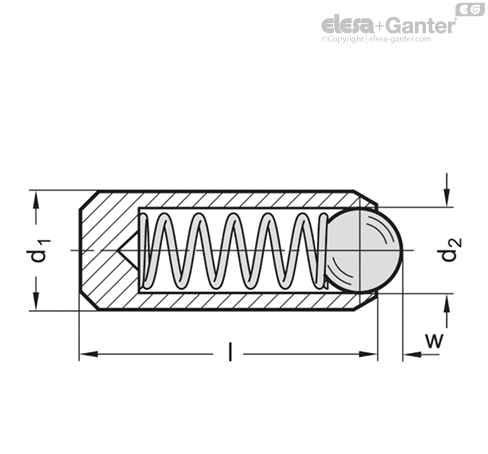

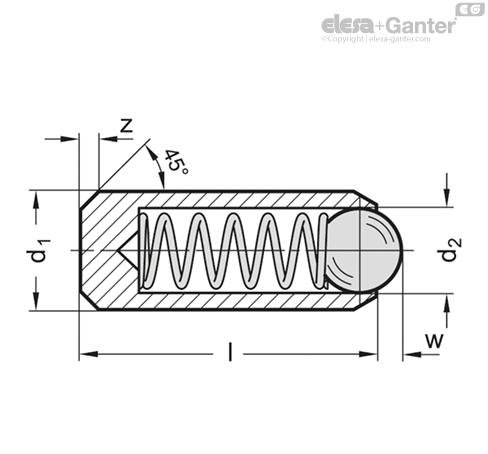

Spring plungers GN 614.3 are installed axially through the depth of the bore whereby the dimension ”z” of the chamfer has to be taken into consideration.

Due to the thin wall of the shell press fitting is not recommended.
