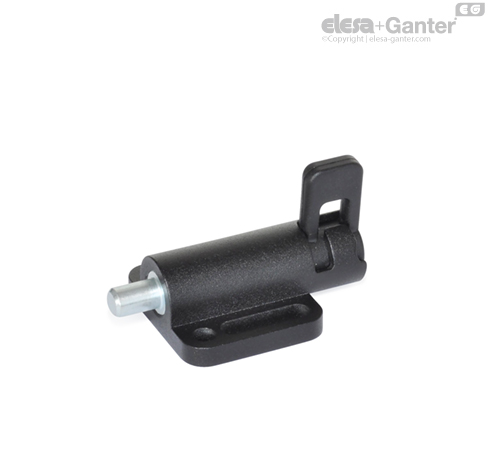

GN 416

Spring latches

GN 416

Spring latches
Spring latches

GN 416

Spring latches
Spring latches

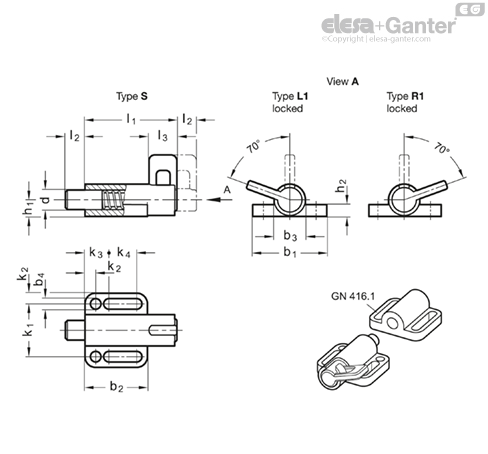

  • Type S: without locking, without rest position
  • Type L1: Locking / Rest position via counterclockwise rotation
  • Type R1: Locking / Rest position via clockwise rotation


Zinc die casting

plastic coated, RAL 9005, textured finish

Plunger pin


zinc plated, blue passivated


Stainless Steel AISI 301

Latch lever

Plastic, Technopolymer (Polyamide PA)

  • black, matte
  • not removable

The plunger of spring latches GN 416 is operated by an axial pulling of the latch lever. This kind of operation from the top side is advantageous in certain installation situations.

The pins of Type S spring latches are engaged in the housing to prevent rotation, and therefore lock in the starting position but not the retracted position. Types R1 and L1 spring latches offer a locking function in the starting as well as in the retracted position, preventing an unintentional operation. A lock notch holds the latch lever in both positions.

The adjustment range is designed in such a way that ISO 7092 washers can be used within the adjustment slot in the housing.
