GN 249.1

Ball buttons

for spring plungers

GN 249.1

Ball buttons
Ball buttons

GN 249.1

Ball buttons
Ball buttons

Steel

hardened and ground

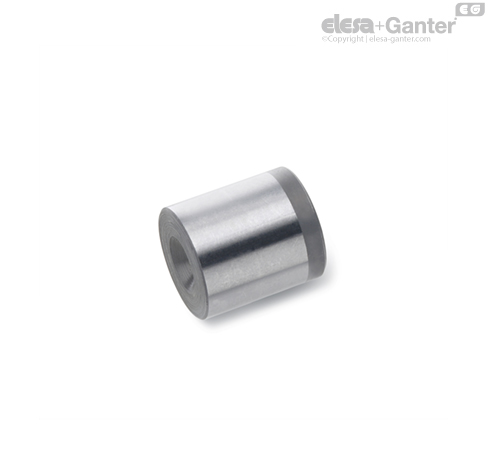

Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.

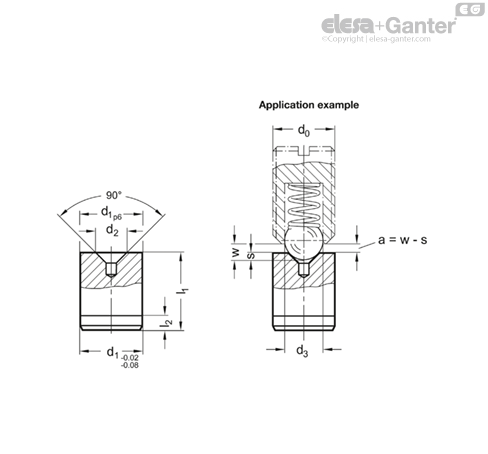

To achieve optimal locking of the spring plungers, the maximum distance a between the ball button and the spring plunger should not be exceeded. The maximum distance a is calculated from the difference between the compression w of the selected plunger and the indentation depth s of the ball in the recess.

These ball buttons are especially recommended for use with spring plungers with high spring loads.
