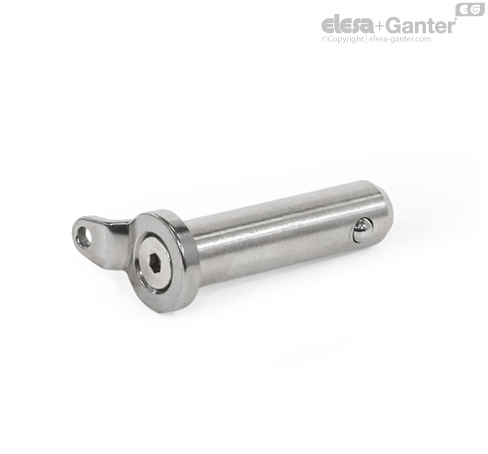

GN 124.3

Stainless Steel Locking Pins

with Axial Lock (Ball Retainer)

GN 124.3

Stainless Steel Locking Pins
Stainless Steel Locking Pins

GN 124.3

Stainless Steel Locking Pins
Stainless Steel Locking Pins

Type

  • Type E: With eyelet washer

Pin

Stainless steel AISI 303

Washer

Stainless steel AISI 316LHC

Metal injection molded

Ball

Stainless steel AISI 420C

Compression spring

Stainless steel AISI 631

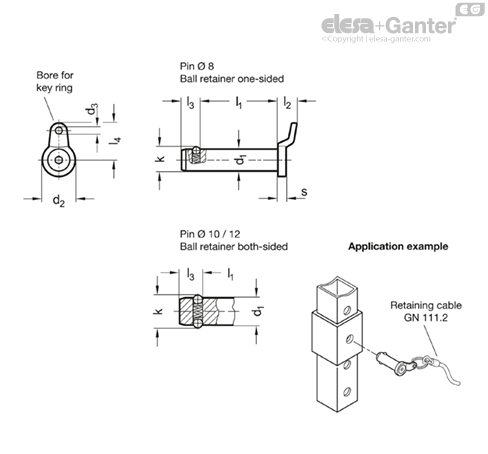

Stainless steel locking pins GN 124.3 are used for quick fixing, connecting and locking of various jig and fixture systems.

The locking balls are held in position by a compression spring and are therefore not rigidly locked. The pins can be quickly and easily inserted and removed from the locating hole.

The technical annex contains the load ratings for the double shear strength (breaking strength).

  • Stainless Steel Retaining Cables GN 111.2
