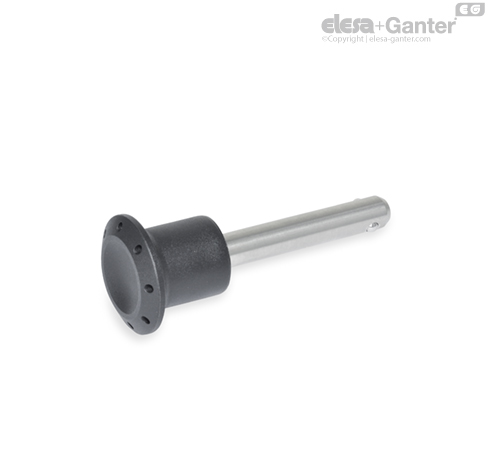

GN 124.2

Stainless Steel-Locking pins

with axial lock (Ball retainer)

GN 124.2

Stainless Steel-Locking pins
Stainless Steel-Locking pins

GN 124.2

Stainless Steel-Locking pins
Stainless Steel-Locking pins

Pin

Stainless Steel AISI 303

Knob

Plastic Technopolymer (Polyamide PA)

  • black-grey
  • temperature resistant up to 80 °C

Ball

Stainless Steel AISI 420C

Spring

Stainless Steel AISI 631

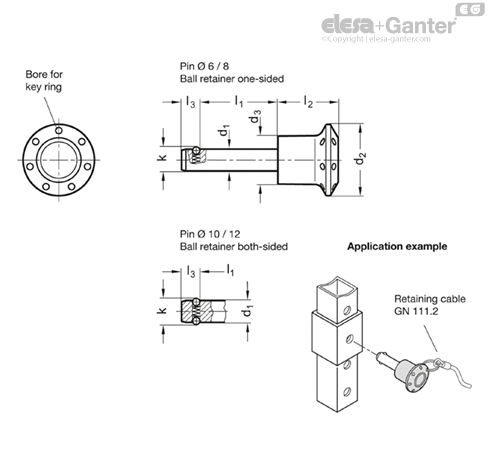

GN 124.2 Stainless Steel-Locking pins are used for quick fixing, connecting and locking of various jig and fixture systems.

The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.

The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

This standard replaces the previous Stainless Steel-Locking pins GN 124.

  • Stainless Steel-Ball chains GN 111.5 -
