GN 124.1

Stainless Steel-Locking pins

with axial lock (magnetic)

GN 124.1

Stainless Steel-Locking pins
Stainless Steel-Locking pins

GN 124.1

Stainless Steel-Locking pins
Stainless Steel-Locking pins

Pin

Stainless Steel AISI 303

Knob

Plastic Technopolymer (Polyamid PA)

  • black-grey
  • temperature resistant up to 80 °C

Retaining magnet

Neodymium, iron, boron

GN 124.1 Stainless Steel-Locking pins are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.

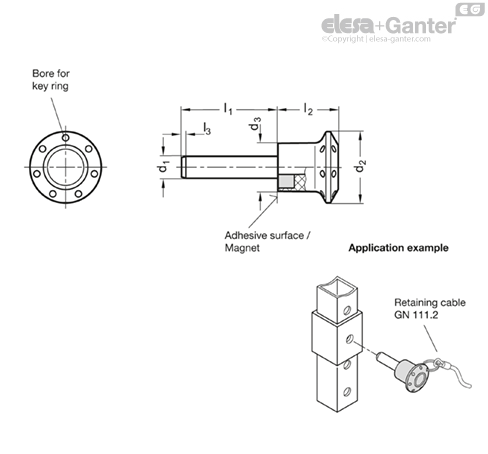

A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.

The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
