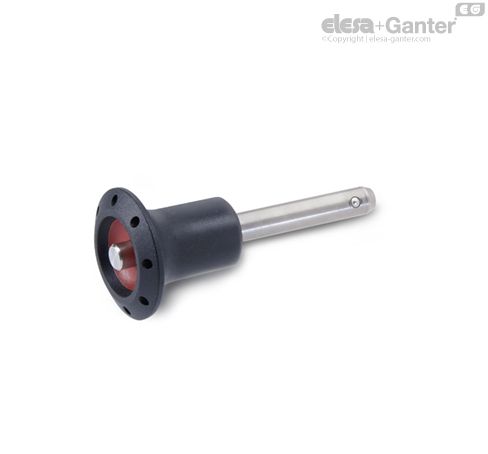

GN 113.6

Stainless Steel-Ball lock pins

AISI 630, with plastic-knob

GN 113.6

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

GN 113.6

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

Pin Stainless Steel AISI 630

precipitation-hardened

Knob

Plastic (Polyamide PA)

  • black-grey / red
  • temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

German Material No. 1.4565

Stainless Steel-Ball lock pins GN 113.6 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
