GN 113.12

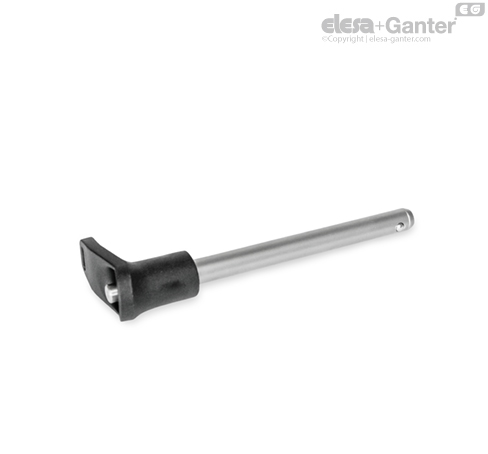

Stainless Steel-Ball lock pins

with L-Handle, pin material no. AISI 630

GN 113.12

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

GN 113.12

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

Pin

Stainless Steel AISI 630

precipitation-hardened

L-Handle

Plastic (Polyamide PA), black

temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel, German Material No. 14565

Stainless Steel-Ball lock pins GN 113.12 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

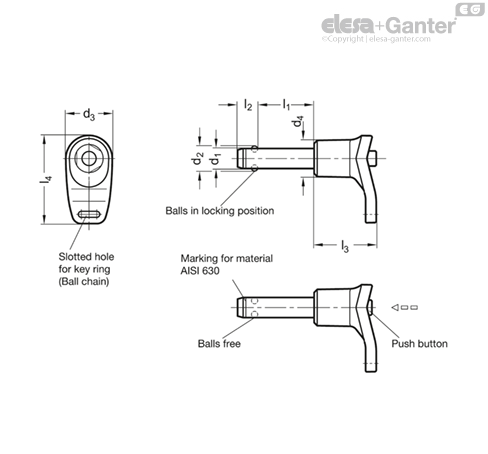

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.12 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant Stainless Steel.
