GN 113.1

Stainless Steel-Ball lock pins

with clamping length compensation

GN 113.1

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

GN 113.1

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

Pin

Stainless Steel AISI 303

Handle

Plastic (Polyamide PA)

  • black-grey / red
  • temperature resistant up to 80 °C

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel AISI 631

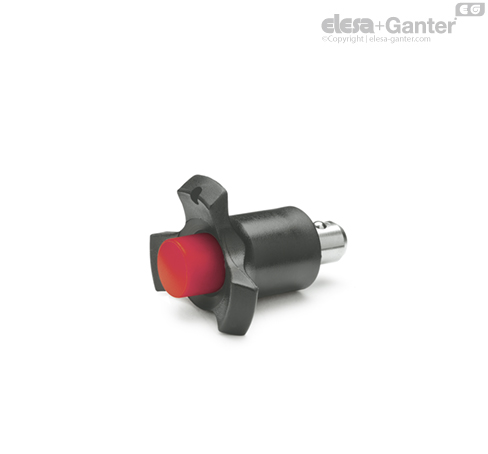

Stainless Steel-Ball lock pins GN 113.1 are used for rapid clamping and, at the same time, play-free clamping of thin components in particular where frequent clamping and releasing is required. A typical application is the alignment and clamping of sheet metal during a welding process.

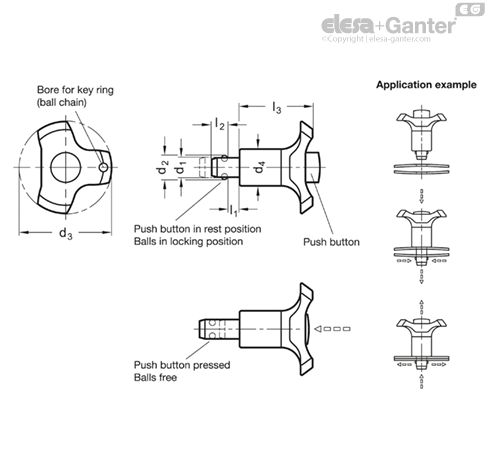

By depressing the spring-loaded push button the pin advances by the length l2 and at the same time frees the two balls.
