GN 1024

Spring cotter pins

Steel / Stainless Steel

GN 1024

Spring cotter pins
Spring cotter pins

GN 1024-NI

Spring cotter pins
Spring cotter pins, Stainless Steel

GN 1024

Spring cotter pins
Spring cotter pins

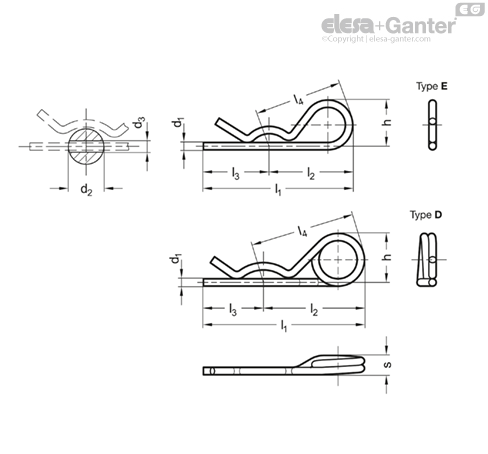

Types

  • Type E: with single winding
  • Type D: with double winding

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel NI

AISI 303

Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935.

Owing to their double winding, spring cotter pins of Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope inclding a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.
