PMT.101

Indexing plungers

Rest position, SUPER-technopolymer body

PMT.101-A

Indexing plungers
Black-oxide steel plunger, without locking nut

PMT.101-AK

Indexing plungers
Black-oxide steel plunger, with locking nut

PMT.101-SST-A

Indexing plungers
AISI 303 stainless steel plunger, without locking nut

PMT.101-SST-AK

Indexing plungers
AISI 303 stainless steel plunger, with locking nut

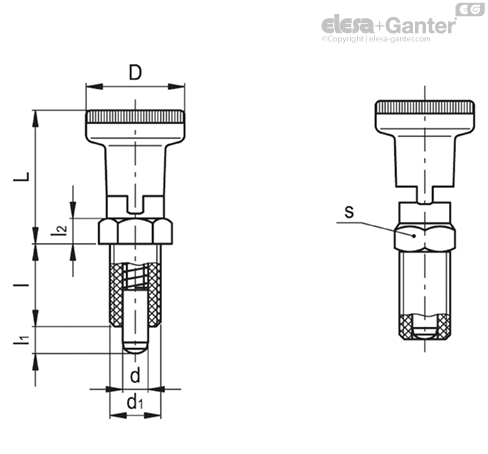

PMT.101-A

Indexing plungers
Black-oxide steel plunger, without locking nut

Threaded body

Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer.

Plunger

Black-oxide hardened steel or AISI 303 stainless steel.

Suggested tolerance for matching hole = H7.

Knob

High-resilienceolyamide based (PA) technopolymer, black colour or RAL 3000 red colour (C6), matte finish.

Spring

AISI 302 stainless steel.

Locking nut

  • NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.

Available also as accessory sold separately (see table).

Standard executions

  • PMT.101-A: black-oxide steel plunger, without locking nut.
  • PMT.101-AK: black-oxide steel plunger, with locking nut (supplied not assembled).
  • PMT.101-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
  • PMT.101-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic.

Features and applications

  • Lightness and mechanical resistance of the product.
  • The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required.
  • Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.101-SST).
  • Resistant to several cleaning cycles with solvents and other chemical agents, for this reason they are suitable for applications as in the pharmaceutical or food industry.
  • The stop toothing (for the rest position), made out of SUPER-technopolymer, protects the device from seizure or wear.

Assembly instructions

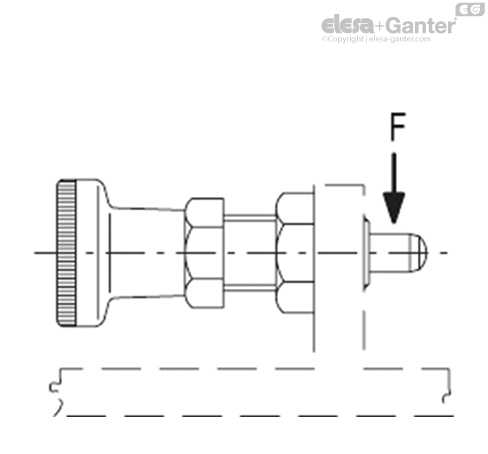

Make sure that no machining residues are left on the threaded hole for the assembly of PMT.101 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).

SUPER-technopolymer product based on ELESA technology, dimensions according to GN 617 standards as agreed with Otto Ganter GmbH Co. KG.

Accessories on request

  • NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer locking nut (see table).
