GN 822.8

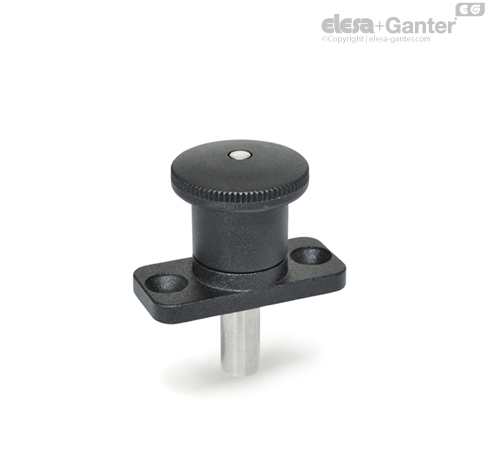

Mini indexing plungers

with and without rest position

GN 822.8

Mini indexing plungers
Mini indexing plungers

GN 822.8

Mini indexing plungers
Mini indexing plungers

Types

  • Type B: without rest position
  • Type C: with rest position

Guide

Zinc die casting

plastic coated

black, textured finish

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Mini indexing plungers GN 822.8 are distinguished for their small dimensions. They are mounted by countersunk screws.

The mini indexing plungers present an affordable alternative to the GN 608 GN 608.1 andGN 608 GN 608.1indexing plungers.

In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.

  • with red knob
