GN 817.4

Indexing plungers

Steel / Stainless Steel, with T-Handle, with and without rest position

GN 817.4

Indexing plungers
Indexing plungers, Steel

GN 817.4-NI

Indexing plungers
Indexing plungers, Stainless Steel

GN 817.4

Indexing plungers
Indexing plungers, Steel

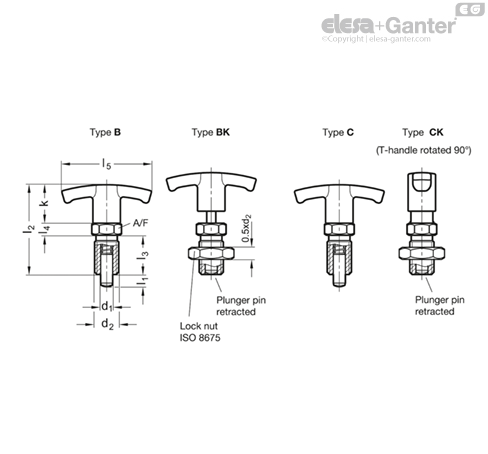

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Version in Steel

  • blackened
  • Pin hardened and grounded

Version in Stainless Steel NI

  • AISI 303
  • Pin chemically nickel plated

T-Handle

Plastic Polyamide (PA)

  • not removable
  • black, matt

Indexing plungers GN 817.4 are similar to GN 817 but with a T-handle instead of a round head.

This shape allows better visual orientation of the indexing position of Type C and is advantageouse when greater unlocking forces occur.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
