GN 817.2

Indexing plungers

Steel / Stainless Steel, with long knob, with and without rest position

GN 817.2

Indexing plungers
Indexing plungers, Steel

GN 817.2-NI

Indexing plungers
Indexing plungers, Stainless Steel

GN 817.2

Indexing plungers
Indexing plungers, Steel

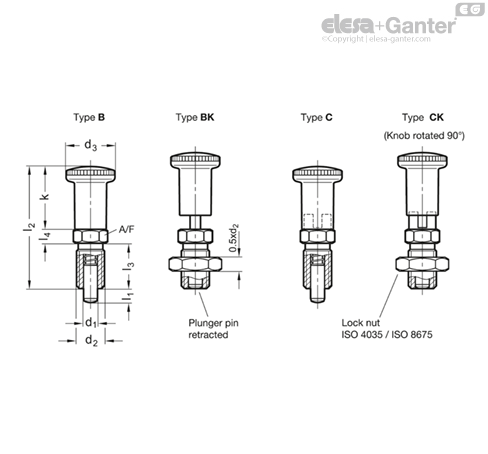

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel NI

  • AISI 303
  • Pin chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 817.2 correspond to GN 817 , they only differ by a longer knob. , they only differ by a longer knob.

Type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is roated by 90° degrees after being retracted. A notch keeps the plunger in this position.
