GN 722.4

Indexing plungers

Steel / Stainless Steel, weldable

GN 722.4-A4

Indexing plungers
Stainless Steel

GN 722.4-A4-RP

Indexing plungers
Stainless Steel, with Rest Position

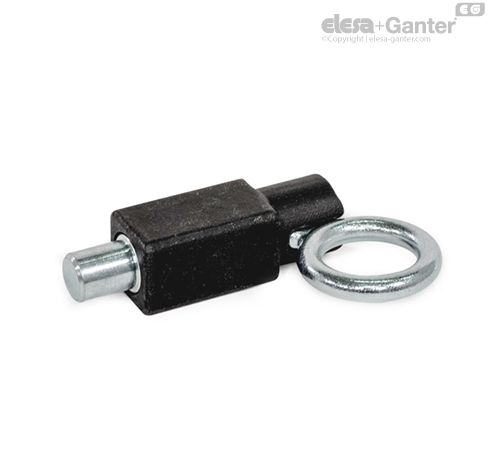

GN 722.4-ST

Indexing plungers
Steel

GN 722.4-ST-RP

Indexing plungers
Steel, with Rest Position

GN 722.4-A4

Indexing plungers
Stainless Steel

Types

  • Type A: with pull ring, mounted
  • Type AU: with pull ring, unmounted

Version in Steel ST

Guide

Steel precision casting ST

blackened, weldable

Pull ring

Steel precision casting

zinc plated, blue passivated

Plunger pin

Steel, zinc plated, blue passivated

Spring

Stainless Steel AISI 316Ti

Version in Stainless Steel A4

Guide / Pull ring

Stainless Steel precision casting A4

weldable, AISI 316

Plunger pin

Stainless Steel AISI 316

Spring

Stainless Steel AISI 316Ti

Grub screw DIN 915

Steel, zinc plated (for ST)

Stainless Steel A4 (for A4)

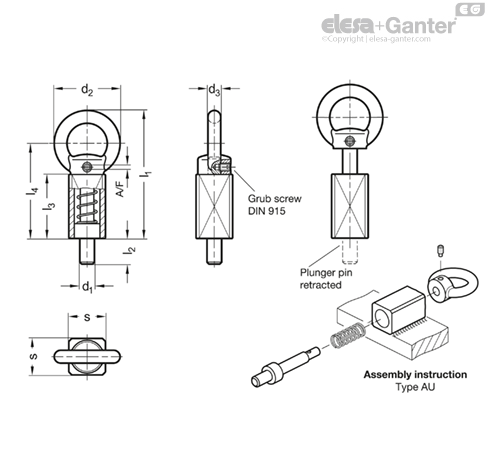

With indexing plungers GN 722.4, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The ST version is designed for applications in steel construction, whereas the A4 stainless steel version is suitable for use in particularly aggressive environments.

The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.

For fastening by welding, the unmounted type AU is particularly recommended to avoid changes to the microstructure of the material due to heating of the spring and plunger pin. In this case, the indexing plunger is assembled only after the surface treatment of the welded guide.
