GN 7017

Indexing plungers

Steel / Stainless Steel, with lever, with and without rest position

GN 7017

Indexing plungers
Indexing plungers, Steel

GN 7017-NI

Indexing plungers
Indexing plungers, Stainless Steel

GN 7017

Indexing plungers
Indexing plungers, Steel

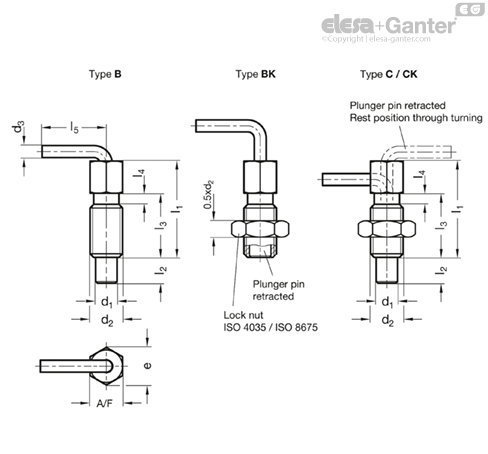

Types

  • Type B: without rest position, without locknut
  • Type BK: without rest position, with locknut
  • Type C: with rest position, without locknut
  • Type CK: with rest position, with locknut
  • Version in Steel zinc plated, blue passivated ST
  • Version in Stainless Steel AISI 303 NI

Spring

Stainless Steel AISI 301

GN 7017 indexing plungers are activated through a lever and are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
