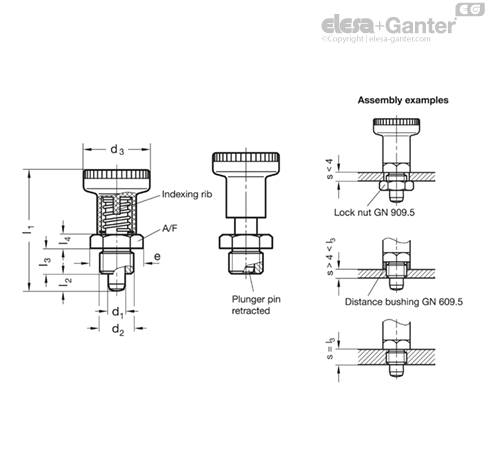

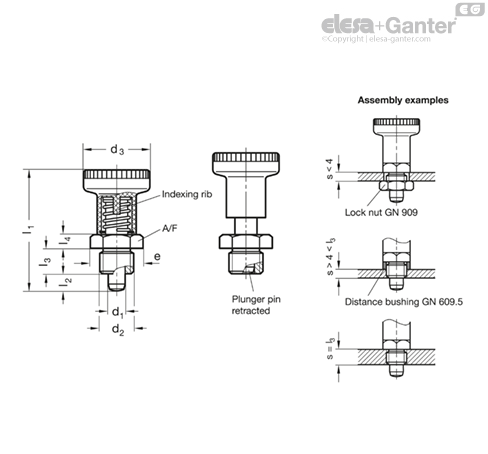

GN 607.1

Indexing plungers

Steel / Stainless Steel, with rest position

GN 607.1

Indexing plungers
Indexing plungers, Steel

GN 607.1-NI

Indexing plungers
Indexing plungers, Stainless Steel

GN 607.1

Indexing plungers
Indexing plungers, Steel

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel ST

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.
