GN 414

Indexing plungers

Steel / Stainless Steel, with safety lock, unlocking with push-button

GN 414

Indexing plungers
Steel

GN 414-NI

Indexing plungers
Stainless Steel

GN 414

Indexing plungers
Steel

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black-grey, RAL 7021, matt
  • temperature resistant up to 80 °C
  • not removable

Push-button

Plastic (Polyacetal POM)

red, RAL 3000, matt

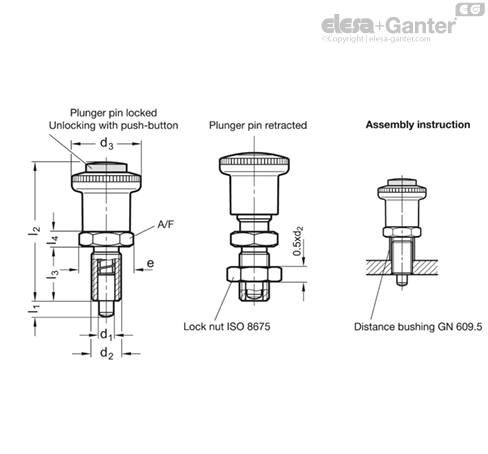

Indexing plungers GN 414 with safety function are used when the inadvertent retraction of the plunger pin is to be prevented. The protruding plunger is first locked and may be unlocked for pulling only by exerting axial pressure on the red safety push-button

In every case, the safety lock engages in the front end position, i.e. automatically if the indexing pin protrudes, with the locking mechanism housed fully in the operating button and protected from malfunctions. The specified axial load bearing capacity refers to the locking force of the bolt against inadvertent operation which must not be exceeded.
