Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Black-oxide hardened steel or AISI 303 stainless steel.
Suggested tolerance H7 for matching hole.
Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
AISI 302 stainless steel.
Available also as accessory sold separately (see table).

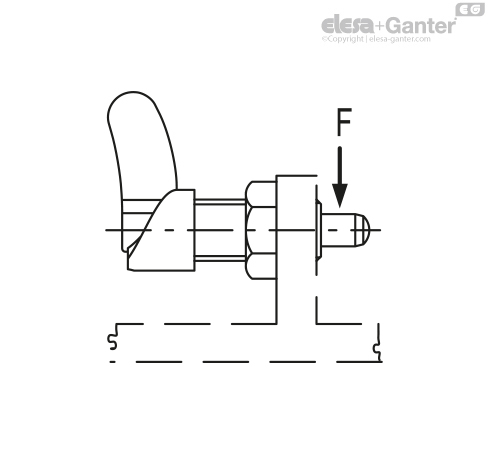

Make sure that no machining residues are left on the threaded hole for the assembly of PMT.200 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
SUPER-technopolymer product based on ELESA technology, dimensions of the threaded body and plunger according to GN 612 standards as agreed with Otto Ganter GmbH Co. KG.
Knob: Elesa original design.
