GN 721

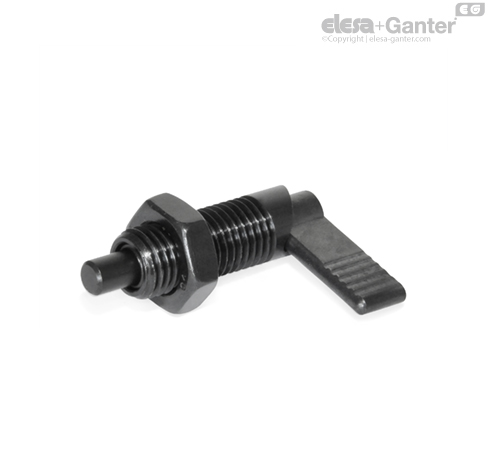

Cam action indexing plungers

with 180° limit stop, without locking function

GN 721

Cam action indexing plungers
Cam action indexing plungers

GN 721

Cam action indexing plungers
Cam action indexing plungers

Types

  • Type RA: Right-hand lock
  • Type RB: Right-hand lock, with plastic cover
  • Type RAK: Right-hand lock, with lock nut
  • Type RBK: Right-hand lock, with plastic cover, with lock nut
  • Type LA: Left-hand lock
  • Type LB: Left-hand lock, with plastic cover
  • Type LAK: Left-hand lock, with lock nut
  • Type LBK: Left-hand lock, with plastic cover, with lock nut

Steel

  • blackened
  • Pin nitrided

Spring

Stainless Steel AISI 301

Plastic cover

Technopolymer (Polyamdie PA)

black, matte

For GN 721 cam action indexing plungers the indexing plunger pin is withdrawn by turning the lock by 180°.

When the cam action indexing plungers are positioned symmetrically, the left or right handed types allow for a practical, i.e. equal, direction setting of the lock.
